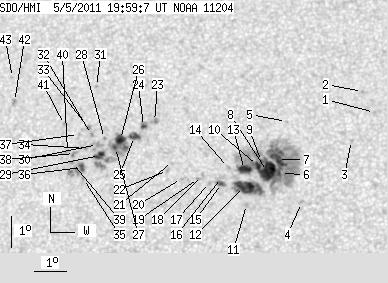

SDO HMI 2011-05-05 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.29 | 365.29 | 45.57 | 193.09 | 16.43 | 48.19 | -1.64 | 4.37 | 0.3493 | -191.1 | -87.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.07 | 53.30 | 3.47 | 351.20 | 0.3772 | 864.0 | 652.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.75 | 52.93 | 3.10 | 352.38 | 0.3873 | 747.0 | 616.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.16 | 52.55 | 2.72 | 352.75 | 0.3608 | 656.0 | 511.0 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 15.16 | 50.96 | 1.13 | 356.65 | 0.3257 | -823.0 | -727.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.77 | 50.50 | 0.66 | 358.27 | 0.3682 | -678.0 | -471.2 | |
| 0.80 | 196.91 | 0.42 | 103.90 | 16.09 | 50.30 | 0.47 | 358.67 | 0.3406 | -1181.9 | -422.2 | |
| 8.93 | -6.00 | 4.72 | -6.00 | 16.54 | 50.21 | 0.38 | 358.96 | 0.3479 | -978.2 | 999999 | |
| 20.99 | -6.00 | 11.06 | -6.00 | 16.15 | 49.89 | 0.06 | 359.83 | 0.3415 | -1256.2 | 999999 | |
| 1.52 | -6.00 | 0.80 | -6.00 | 16.47 | 49.71 | -0.13 | 0.35 | 0.3468 | -704.4 | 999999 | |
| 2.95 | -6.00 | 1.55 | -6.00 | 16.34 | 49.58 | -0.25 | 0.71 | 0.3447 | -772.5 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 15.09 | 49.24 | -0.60 | 1.78 | 0.3242 | -789.0 | -677.0 | |
| 16.26 | 35.56 | 8.54 | 18.67 | 15.67 | 49.17 | -0.66 | 1.91 | 0.3338 | -1054.5 | -836.4 | |
| 7.77 | -6.00 | 4.10 | -6.00 | 16.22 | 49.17 | -0.66 | 1.86 | 0.3428 | -1070.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.28 | 48.67 | -1.17 | 3.27 | 0.3442 | -707.0 | -579.6 | |
| 2.32 | 4.82 | 1.22 | 2.54 | 15.77 | 48.45 | -1.38 | 3.98 | 0.3360 | -826.5 | -663.6 | |
| 0.00 | 2.68 | 0.00 | 1.41 | 15.96 | 48.45 | -1.38 | 3.95 | 0.3392 | 65.0 | 6.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.80 | 48.07 | -1.76 | 5.06 | 0.3370 | -699.0 | -422.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 16.02 | 47.85 | -1.98 | 5.62 | 0.3410 | -656.0 | -496.1 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 15.93 | 47.73 | -2.11 | 6.00 | 0.3397 | -726.0 | -458.8 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.93 | 47.19 | -2.64 | 7.51 | 0.3407 | -714.0 | -540.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 16.48 | 46.90 | -2.93 | 8.09 | 0.3503 | 160.0 | 232.2 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 16.19 | 46.75 | -3.09 | 8.64 | 0.3460 | -759.0 | -482.6 | |
| 0.00 | 3.66 | 0.00 | 1.95 | 17.77 | 46.31 | -3.53 | 9.08 | 0.3727 | 937.0 | 804.4 | |
| 2.05 | 5.27 | 1.10 | 2.81 | 17.61 | 45.96 | -3.87 | 10.04 | 0.3710 | 920.0 | 656.7 | |
| 5.81 | 38.77 | 3.09 | 20.61 | 17.29 | 45.68 | -4.15 | 10.91 | 0.3667 | 933.1 | 762.4 | |
| 6.52 | -25.00 | 3.47 | -25.00 | 17.20 | 45.24 | -4.59 | 12.10 | 0.3666 | 996.5 | 999999 | |
| 1.70 | -25.00 | 0.90 | -25.00 | 16.94 | 45.09 | -4.75 | 12.65 | 0.3631 | 1188.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.23 | 44.73 | -5.10 | 13.37 | 0.3690 | 812.0 | 670.1 | |
| 5.36 | 22.25 | 2.85 | 11.80 | 16.68 | 44.59 | -5.25 | 14.11 | 0.3609 | 1105.7 | 794.8 | |
| 0.00 | 5.72 | 0.00 | 3.04 | 17.04 | 44.51 | -5.32 | 14.05 | 0.3668 | 867.0 | 717.9 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.93 | 44.42 | -5.41 | 13.04 | 0.3968 | 659.0 | 496.3 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 17.36 | 44.31 | -5.52 | 14.32 | 0.3727 | 802.0 | 728.4 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 17.59 | 44.21 | -5.62 | 14.42 | 0.3767 | 723.0 | 663.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.91 | 44.17 | -5.67 | 15.01 | 0.3662 | 961.0 | 824.2 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.95 | 44.10 | -5.73 | 15.93 | 0.3513 | 904.0 | 717.1 | |
| 3.31 | 14.21 | 1.75 | 7.53 | 16.30 | 44.03 | -5.81 | 15.84 | 0.3572 | 1099.5 | 811.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.37 | 43.90 | -5.93 | 15.34 | 0.3745 | 774.0 | 607.3 | |
| 0.00 | 3.04 | 0.00 | 1.62 | 16.75 | 43.79 | -6.04 | 16.08 | 0.3654 | 816.0 | 699.3 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 16.46 | 43.74 | -6.10 | 16.45 | 0.3611 | 902.0 | 785.4 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 16.82 | 43.57 | -6.27 | 16.59 | 0.3674 | 784.0 | 601.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.69 | 43.44 | -6.39 | 16.21 | 0.3816 | 884.0 | 704.4 | |
| 0.00 | 2.05 | 0.00 | 1.11 | 18.46 | 41.81 | -8.03 | 19.36 | 0.4013 | 953.0 | 779.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.24 | 41.70 | -8.13 | 18.91 | 0.4137 | 693.0 | 584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
