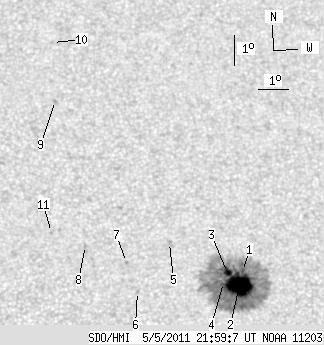

SDO HMI 2011-05-05 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.30 | 301.85 | 24.73 | 164.78 | 18.00 | 61.01 | 12.29 | 331.21 | 0.4226 | -855.5 | -401.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 293.45 | 0.20 | 160.17 | 18.30 | 61.31 | 12.58 | 331.02 | 0.4287 | -596.5 | -428.1 | |
| 39.94 | -1.00 | 21.80 | -1.00 | 17.87 | 61.18 | 12.46 | 330.75 | 0.4219 | -1294.9 | 999999 | |
| 4.29 | -1.00 | 2.34 | -1.00 | 18.26 | 60.82 | 12.09 | 331.92 | 0.4244 | -943.0 | 999999 | |
| 0.71 | -1.00 | 0.39 | -1.00 | 17.93 | 60.67 | 11.94 | 331.83 | 0.4188 | -1081.0 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 19.21 | 59.00 | 10.27 | 336.58 | 0.4254 | -611.0 | -512.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.60 | 57.87 | 9.14 | 337.34 | 0.3949 | 676.0 | 490.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 18.54 | 57.56 | 8.84 | 338.94 | 0.4070 | 772.0 | 578.1 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 19.09 | 56.27 | 7.54 | 342.24 | 0.4082 | 804.0 | 617.2 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 23.93 | 55.52 | 6.80 | 346.86 | 0.4781 | 721.0 | 650.3 | |
| 0.00 | 1.07 | 0.00 | 0.62 | 25.93 | 55.54 | 6.81 | 347.83 | 0.5077 | 710.0 | 526.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 19.50 | 55.19 | 6.46 | 344.93 | 0.4098 | 728.0 | 556.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
