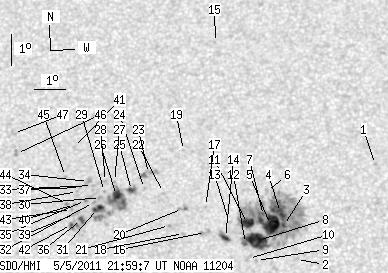

SDO HMI 2011-05-05 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.21 | 392.44 | 51.78 | 207.43 | 16.39 | 48.19 | -0.54 | 1.32 | 0.3476 | -278.6 | -28.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.77 | 18.12 | 53.31 | 4.59 | 348.45 | 0.3811 | 729.0 | 574.5 | |
| 0.00 | 1.61 | 0.00 | 0.84 | 15.04 | 50.76 | 2.04 | 353.91 | 0.3249 | -610.0 | -533.3 | |
| 1.79 | 247.88 | 0.94 | 130.73 | 16.13 | 50.36 | 1.64 | 355.38 | 0.3422 | -1064.8 | -382.0 | |
| 13.85 | -3.00 | 7.32 | -3.00 | 16.55 | 50.27 | 1.55 | 355.73 | 0.3489 | -913.4 | 999999 | |
| 25.02 | -3.00 | 13.18 | -3.00 | 16.16 | 49.96 | 1.23 | 356.53 | 0.3422 | -1193.7 | 999999 | |
| 0.00 | 3.04 | 0.00 | 1.61 | 17.23 | 49.84 | 1.11 | 357.04 | 0.3596 | 109.0 | 93.5 | |
| 0.45 | -3.00 | 0.24 | -3.00 | 16.45 | 49.74 | 1.01 | 357.19 | 0.3468 | -681.2 | 999999 | |
| 24.66 | -3.00 | 12.95 | -3.00 | 15.65 | 49.54 | 0.82 | 357.63 | 0.3334 | -1131.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.01 | 49.51 | 0.78 | 357.64 | 0.3228 | -788.0 | -601.5 | |
| 0.00 | 2.86 | 0.00 | 1.50 | 15.07 | 49.26 | 0.53 | 358.40 | 0.3237 | -754.0 | -641.8 | |
| 9.56 | -3.00 | 5.04 | -3.00 | 16.19 | 49.23 | 0.51 | 358.57 | 0.3423 | -1011.3 | 999999 | |
| 0.54 | -3.00 | 0.28 | -3.00 | 15.55 | 49.17 | 0.44 | 358.71 | 0.3316 | -1000.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 16.23 | 48.66 | -0.06 | 0.17 | 0.3427 | -603.0 | -464.7 | |
| 3.66 | 6.52 | 1.92 | 3.43 | 15.74 | 48.54 | -0.19 | 0.54 | 0.3347 | -715.3 | -299.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 22.14 | 48.21 | -0.52 | 1.10 | 0.4381 | 673.0 | 597.1 | |
| 0.00 | 4.83 | 0.00 | 2.54 | 15.91 | 47.91 | -0.81 | 2.33 | 0.3377 | -869.0 | -616.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.74 | 47.91 | -0.82 | 2.24 | 0.3514 | -572.0 | -451.3 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.87 | 47.22 | -1.51 | 4.31 | 0.3378 | -771.0 | -578.1 | |
| 0.00 | 0.27 | 0.00 | 0.14 | 18.56 | 47.20 | -1.53 | 3.81 | 0.3817 | -561.0 | -555.7 | |
| 0.00 | 3.84 | 0.00 | 2.03 | 16.68 | 47.18 | -1.54 | 4.23 | 0.3511 | -630.0 | -544.9 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 16.13 | 46.78 | -1.95 | 5.49 | 0.3427 | -818.0 | -606.4 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 17.20 | 46.58 | -2.15 | 5.73 | 0.3604 | 683.0 | 479.5 | |
| 0.00 | 9.47 | 0.00 | 5.05 | 17.82 | 46.09 | -2.63 | 6.80 | 0.3712 | 538.0 | 714.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.33 | 45.97 | -2.75 | 7.28 | 0.3636 | 836.0 | 615.0 | |
| 3.66 | 5.63 | 1.95 | 2.99 | 17.27 | 45.56 | -3.16 | 8.37 | 0.3635 | 973.5 | 704.2 | |
| 7.06 | 53.17 | 3.75 | 28.19 | 17.11 | 45.09 | -3.64 | 9.68 | 0.3621 | 1081.6 | 765.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.56 | 45.02 | -3.71 | 9.65 | 0.3696 | 662.0 | 503.8 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.56 | 44.73 | -4.00 | 10.38 | 0.3705 | 694.0 | 532.9 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.24 | 44.71 | -4.02 | 10.61 | 0.3653 | 828.0 | 690.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.04 | 44.58 | -4.14 | 11.03 | 0.3626 | 854.0 | 789.1 | |
| 5.36 | -26.00 | 2.84 | -26.00 | 16.69 | 44.50 | -4.23 | 11.46 | 0.3572 | 1111.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 16.88 | 44.36 | -4.36 | 11.69 | 0.3608 | 808.0 | 692.1 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.43 | 44.32 | -4.41 | 11.49 | 0.3697 | 773.0 | 675.0 | |
| 0.00 | 4.56 | 0.00 | 2.43 | 17.56 | 44.19 | -4.54 | 11.74 | 0.3722 | 841.0 | 589.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.95 | 44.11 | -4.62 | 12.31 | 0.3627 | 947.0 | 738.9 | |
| 1.97 | 11.17 | 1.04 | 5.91 | 16.34 | 44.00 | -4.73 | 12.99 | 0.3533 | 1137.4 | 829.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.37 | 43.94 | -4.79 | 12.48 | 0.3700 | 679.0 | 520.3 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.24 | 43.85 | -4.88 | 12.80 | 0.3682 | 618.0 | 518.8 | |
| 0.00 | 4.56 | 0.00 | 2.42 | 16.53 | 43.80 | -4.92 | 13.38 | 0.3571 | 722.0 | 634.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 16.82 | 43.76 | -4.96 | 13.28 | 0.3619 | 798.0 | 632.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.67 | 43.68 | -5.05 | 12.34 | 0.3915 | 612.0 | 510.6 | |
| 0.63 | -36.00 | 0.33 | -36.00 | 16.18 | 43.69 | -5.04 | 13.93 | 0.3520 | 907.1 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 16.66 | 43.67 | -5.05 | 13.63 | 0.3597 | 789.0 | 594.9 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 16.86 | 43.51 | -5.22 | 13.91 | 0.3634 | 821.0 | 664.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.73 | 43.45 | -5.27 | 13.47 | 0.3774 | 836.0 | 668.9 | |
| 0.00 | 2.77 | 0.00 | 1.49 | 18.49 | 41.86 | -6.87 | 16.71 | 0.3960 | 845.0 | 678.4 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 19.15 | 41.73 | -6.99 | 16.50 | 0.4066 | 713.0 | 410.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
