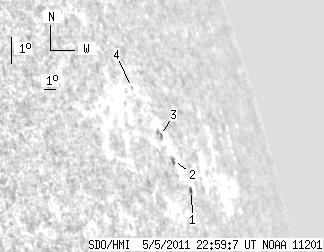

SDO HMI 2011-05-05 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 10.90 | 3.05 | 16.79 | 14.02 | 117.77 | 69.60 | 286.17 | 0.9482 | 7.7 | -164.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 2.59 | 3.05 | 4.21 | 12.86 | 119.07 | 70.90 | 284.76 | 0.9540 | 174.6 | 192.8 | |
| 0.00 | 2.86 | 0.00 | 4.44 | 13.73 | 117.97 | 69.80 | 285.84 | 0.9490 | -392.0 | -260.2 | |
| 0.00 | 4.29 | 0.00 | 6.48 | 14.48 | 117.30 | 69.13 | 286.72 | 0.9461 | -324.0 | -251.5 | |
| 0.00 | 1.16 | 0.00 | 1.66 | 15.91 | 115.80 | 67.62 | 288.48 | 0.9392 | 230.0 | 178.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
