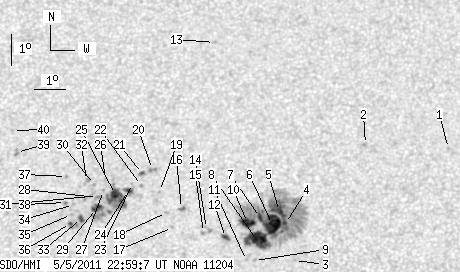

SDO HMI 2011-05-05 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.02 | 388.45 | 50.09 | 205.33 | 16.31 | 48.33 | 0.16 | 359.39 | 0.3462 | -301.9 | -63.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.64 | 55.69 | 7.52 | 341.92 | 0.4012 | 755.0 | 609.2 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 18.75 | 53.03 | 4.86 | 348.14 | 0.3919 | 814.0 | 634.9 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.99 | 50.71 | 2.54 | 352.41 | 0.3249 | -720.0 | -645.7 | |
| 1.52 | 264.71 | 0.80 | 139.65 | 16.17 | 50.44 | 2.27 | 353.63 | 0.3438 | -1048.9 | -379.0 | |
| 7.78 | -4.00 | 4.11 | -4.00 | 16.56 | 50.26 | 2.08 | 354.26 | 0.3498 | -931.6 | 999999 | |
| 21.63 | -4.00 | 11.40 | -4.00 | 16.14 | 50.03 | 1.86 | 354.76 | 0.3426 | -1229.8 | 999999 | |
| 3.31 | -4.00 | 1.74 | -4.00 | 16.36 | 49.65 | 1.48 | 355.87 | 0.3457 | -670.5 | 999999 | |
| 29.04 | -4.00 | 15.26 | -4.00 | 15.63 | 49.55 | 1.38 | 355.99 | 0.3335 | -1098.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 14.99 | 49.46 | 1.28 | 356.14 | 0.3228 | -830.0 | -650.8 | |
| 10.19 | -4.00 | 5.37 | -4.00 | 16.20 | 49.24 | 1.07 | 356.98 | 0.3427 | -997.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.98 | 49.21 | 1.03 | 356.89 | 0.3225 | -687.0 | -617.0 | |
| 2.06 | 3.40 | 1.08 | 1.78 | 15.72 | 48.55 | 0.38 | 358.91 | 0.3343 | -750.8 | -501.2 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 22.12 | 48.21 | 0.03 | 359.93 | 0.4376 | 701.0 | 524.6 | |
| 0.00 | 4.47 | 0.00 | 2.35 | 16.01 | 47.95 | -0.22 | 0.62 | 0.3390 | -378.0 | -587.5 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 15.88 | 47.86 | -0.31 | 0.90 | 0.3369 | -896.0 | -683.7 | |
| 0.00 | 2.77 | 0.00 | 1.46 | 16.65 | 47.16 | -1.01 | 2.77 | 0.3500 | -833.0 | -667.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 16.04 | 46.88 | -1.29 | 3.66 | 0.3402 | -814.0 | -650.6 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 16.53 | 46.69 | -1.48 | 4.10 | 0.3484 | -655.0 | -448.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.20 | 46.46 | -1.71 | 4.56 | 0.3598 | 741.0 | 567.8 | |
| 0.00 | 3.04 | 0.00 | 1.62 | 17.92 | 46.24 | -1.94 | 4.99 | 0.3717 | 864.0 | 756.1 | |
| 1.97 | 1.97 | 1.05 | 1.05 | 17.79 | 45.92 | -2.25 | 5.83 | 0.3701 | 848.9 | 0.0 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.40 | 45.89 | -2.28 | 6.02 | 0.3638 | 805.0 | 642.0 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.47 | 45.61 | -2.57 | 6.74 | 0.3654 | 700.0 | 493.2 | |
| 3.04 | 5.72 | 1.61 | 3.04 | 17.24 | 45.48 | -2.69 | 7.14 | 0.3620 | 945.9 | 537.6 | |
| 4.65 | 54.51 | 2.47 | 28.88 | 17.11 | 45.07 | -3.10 | 8.27 | 0.3608 | 1105.4 | 788.4 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 17.63 | 44.75 | -3.43 | 8.89 | 0.3700 | 628.0 | 525.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.24 | 44.69 | -3.48 | 9.21 | 0.3638 | 804.0 | 624.9 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 17.02 | 44.50 | -3.67 | 9.81 | 0.3607 | 967.0 | 820.0 | |
| 5.45 | -25.00 | 2.89 | -25.00 | 16.66 | 44.48 | -3.69 | 10.05 | 0.3551 | 1112.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.44 | 44.40 | -3.77 | 9.87 | 0.3678 | 744.0 | 589.7 | |
| 0.00 | 4.65 | 0.00 | 2.47 | 17.05 | 44.25 | -3.92 | 10.45 | 0.3620 | 717.0 | 662.8 | |
| 0.00 | 3.57 | 0.00 | 1.91 | 17.57 | 44.14 | -4.03 | 10.46 | 0.3706 | 658.0 | 598.8 | |
| 3.22 | 3.93 | 1.70 | 2.08 | 16.34 | 44.01 | -4.16 | 11.48 | 0.3513 | 1060.5 | 808.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.79 | 43.75 | -4.42 | 11.91 | 0.3595 | 794.0 | 718.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.47 | 43.69 | -4.48 | 12.25 | 0.3545 | 837.0 | 653.8 | |
| 1.16 | 6.43 | 0.61 | 3.40 | 16.18 | 43.67 | -4.50 | 12.50 | 0.3500 | 822.2 | 789.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 17.70 | 43.50 | -4.67 | 11.99 | 0.3747 | 805.0 | 610.3 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.86 | 43.49 | -4.68 | 12.53 | 0.3614 | 782.0 | 688.2 | |
| 0.00 | 3.04 | 0.00 | 1.64 | 18.49 | 41.88 | -6.29 | 15.38 | 0.3934 | 895.0 | 682.1 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 19.22 | 41.72 | -6.45 | 15.24 | 0.4052 | 647.0 | 525.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
