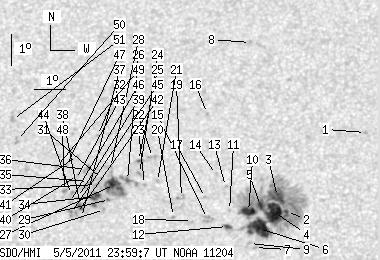

SDO HMI 2011-05-05 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.82 | 401.48 | 53.18 | 212.30 | 16.42 | 48.24 | 0.62 | 358.11 | 0.3482 | -160.9 | -58.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 0.91 | 18.76 | 53.06 | 5.44 | 346.78 | 0.3940 | 863.0 | 647.4 | |
| 1.43 | 260.01 | 0.75 | 137.23 | 16.18 | 50.49 | 2.87 | 351.97 | 0.3451 | -956.7 | -381.6 | |
| 13.41 | -2.00 | 7.09 | -2.00 | 16.66 | 50.21 | 2.59 | 352.92 | 0.3523 | -854.4 | 999999 | |
| 22.61 | -2.00 | 11.92 | -2.00 | 16.15 | 50.11 | 2.49 | 353.00 | 0.3437 | -1184.3 | 999999 | |
| 3.66 | -2.00 | 1.93 | -2.00 | 16.37 | 49.67 | 2.05 | 354.30 | 0.3466 | -724.4 | 999999 | |
| 25.65 | -2.00 | 13.48 | -2.00 | 15.63 | 49.60 | 1.98 | 354.27 | 0.3344 | -1133.4 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.03 | 49.47 | 1.85 | 354.46 | 0.3241 | -747.0 | -575.5 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 21.72 | 49.41 | 1.79 | 356.13 | 0.4322 | 803.0 | 583.2 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 15.15 | 49.31 | 1.69 | 354.96 | 0.3260 | -878.0 | -736.5 | |
| 9.03 | -2.00 | 4.76 | -2.00 | 16.18 | 49.29 | 1.67 | 355.30 | 0.3428 | -979.9 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.21 | 48.69 | 1.07 | 356.99 | 0.3427 | -597.0 | -432.8 | |
| 2.50 | 3.84 | 1.31 | 2.02 | 15.70 | 48.62 | 1.01 | 357.09 | 0.3342 | -733.4 | -527.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.98 | 48.57 | 0.95 | 357.43 | 0.3553 | -565.0 | -393.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 17.37 | 48.28 | 0.67 | 358.24 | 0.3615 | 624.0 | 506.4 | |
| 0.00 | 6.88 | 0.00 | 3.62 | 15.95 | 48.00 | 0.38 | 358.92 | 0.3380 | -479.0 | -672.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 19.36 | 48.00 | 0.38 | 359.07 | 0.3937 | -816.0 | -682.0 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.63 | 47.94 | 0.32 | 359.13 | 0.3492 | -456.0 | -376.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 15.89 | 47.53 | -0.09 | 0.27 | 0.3369 | -533.0 | -539.0 | |
| 0.00 | 3.40 | 0.00 | 1.79 | 16.63 | 47.18 | -0.44 | 1.22 | 0.3492 | -439.0 | -575.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.02 | 46.93 | -0.69 | 1.97 | 0.3392 | -794.0 | -643.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.15 | 46.42 | -1.20 | 3.22 | 0.3582 | 508.0 | 425.4 | |
| 0.00 | 2.77 | 0.00 | 1.48 | 17.93 | 46.25 | -1.37 | 3.52 | 0.3710 | 598.0 | 701.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.05 | 46.01 | -1.61 | 4.34 | 0.3570 | 501.0 | 302.5 | |
| 0.00 | 2.23 | 0.00 | 1.19 | 17.41 | 45.85 | -1.77 | 4.69 | 0.3630 | 875.0 | 607.4 | |
| 0.36 | 2.50 | 0.19 | 1.33 | 17.83 | 45.81 | -1.81 | 4.68 | 0.3700 | 877.8 | 732.0 | |
| 1.43 | 7.95 | 0.76 | 4.22 | 17.18 | 45.47 | -2.15 | 5.74 | 0.3599 | 879.8 | 747.5 | |
| 11.71 | 29.50 | 6.21 | 15.64 | 17.05 | 45.06 | -2.56 | 6.87 | 0.3586 | 1019.2 | 747.0 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 17.60 | 44.92 | -2.70 | 7.03 | 0.3678 | 590.0 | 538.2 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 16.57 | 44.91 | -2.71 | 7.46 | 0.3510 | 767.0 | 747.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.25 | 44.75 | -2.87 | 8.01 | 0.3461 | 718.0 | 574.0 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.25 | 44.64 | -2.98 | 7.89 | 0.3626 | 699.0 | 584.3 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.65 | 44.49 | -3.13 | 7.74 | 0.3855 | 682.0 | 489.3 | |
| 0.00 | 2.59 | 0.00 | 1.38 | 17.05 | 44.49 | -3.13 | 8.38 | 0.3598 | 888.0 | 791.4 | |
| 5.81 | 12.87 | 3.08 | 6.81 | 16.67 | 44.46 | -3.16 | 8.62 | 0.3536 | 1106.3 | 878.6 | |
| 0.00 | 10.64 | 0.00 | 5.65 | 17.15 | 44.23 | -3.39 | 9.01 | 0.3621 | 587.0 | 636.7 | |
| 0.00 | 3.93 | 0.00 | 2.09 | 17.54 | 44.16 | -3.46 | 9.02 | 0.3685 | 663.0 | 568.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.99 | 44.03 | -3.59 | 10.12 | 0.3439 | 856.0 | 589.2 | |
| 3.22 | 3.49 | 1.70 | 1.84 | 16.35 | 43.99 | -3.63 | 10.03 | 0.3497 | 1024.6 | 1063.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.64 | 43.89 | -3.73 | 10.15 | 0.3547 | 805.0 | 619.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.35 | 43.88 | -3.74 | 9.83 | 0.3662 | 602.0 | 491.9 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 18.00 | 43.87 | -3.75 | 9.56 | 0.3766 | 610.0 | 477.6 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 16.12 | 43.87 | -3.75 | 10.49 | 0.3464 | 1039.0 | 935.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.22 | 43.82 | -3.80 | 10.05 | 0.3642 | 733.0 | 587.1 | |
| 0.00 | 3.49 | 0.00 | 1.85 | 16.73 | 43.70 | -3.92 | 10.61 | 0.3568 | 787.0 | 614.4 | |
| 0.00 | 3.04 | 0.00 | 1.60 | 16.12 | 43.68 | -3.94 | 11.00 | 0.3470 | 811.0 | 798.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.48 | 43.64 | -3.98 | 10.91 | 0.3528 | 799.0 | 644.1 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.67 | 43.52 | -4.10 | 10.58 | 0.3724 | 795.0 | 593.6 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 16.86 | 43.48 | -4.14 | 11.13 | 0.3596 | 854.0 | 625.5 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.64 | 43.21 | -4.41 | 11.39 | 0.3729 | 749.0 | 600.6 | |
| 0.00 | 2.86 | 0.00 | 1.54 | 18.50 | 41.90 | -5.72 | 14.04 | 0.3910 | 837.0 | 666.8 | |
| 0.00 | 3.22 | 0.00 | 1.74 | 19.19 | 41.75 | -5.87 | 13.95 | 0.4023 | 668.0 | 436.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
