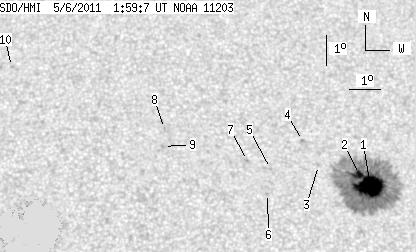

SDO HMI 2011-05-06 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.38 | 294.03 | 23.35 | 161.94 | 17.92 | 60.95 | 14.43 | 327.10 | 0.4386 | -836.8 | -397.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.09 | 285.29 | 20.98 | 157.15 | 17.84 | 61.13 | 14.61 | 326.67 | 0.4389 | -1293.8 | -422.4 | |
| 4.29 | -1.00 | 2.37 | -1.00 | 18.22 | 60.80 | 14.28 | 327.75 | 0.4410 | -970.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 18.50 | 59.48 | 12.96 | 330.52 | 0.4340 | -470.0 | -384.4 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 19.31 | 59.02 | 12.50 | 332.32 | 0.4416 | -755.0 | -612.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 18.38 | 57.90 | 11.39 | 333.43 | 0.4206 | 671.0 | 522.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.56 | 57.75 | 11.24 | 332.80 | 0.4081 | 766.0 | 657.0 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 18.63 | 57.17 | 10.66 | 335.18 | 0.4192 | 722.0 | 552.6 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 19.65 | 54.54 | 8.02 | 341.63 | 0.4187 | 736.0 | 566.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 19.06 | 54.48 | 7.96 | 341.28 | 0.4095 | 805.0 | 579.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 21.68 | 49.64 | 3.13 | 353.26 | 0.4333 | 734.0 | 564.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
