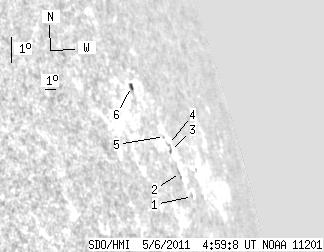

SDO HMI 2011-05-06 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 7.77 | 3.21 | 13.89 | 14.49 | 117.16 | 72.29 | 286.24 | 0.9617 | -0.6 | -75.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 1.59 | 12.77 | 119.00 | 74.14 | 284.22 | 0.9689 | 118.0 | 143.0 | |
| 0.00 | 1.25 | 0.00 | 2.35 | 13.47 | 118.22 | 73.35 | 285.04 | 0.9659 | -98.0 | -163.6 | |
| 0.00 | 1.61 | 0.00 | 2.95 | 14.13 | 117.67 | 72.80 | 285.79 | 0.9639 | -287.0 | -174.5 | |
| 0.00 | 1.07 | 0.00 | 1.96 | 14.32 | 117.61 | 72.74 | 285.99 | 0.9638 | -250.0 | -114.3 | |
| 0.00 | 0.45 | 0.00 | 0.81 | 14.55 | 117.38 | 72.52 | 286.27 | 0.9629 | -192.0 | -154.2 | |
| 1.97 | 2.59 | 3.21 | 4.23 | 16.01 | 115.28 | 70.41 | 288.09 | 0.9540 | 219.3 | 212.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
