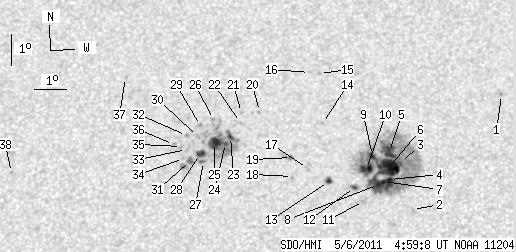

SDO HMI 2011-05-06 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.38 | 416.61 | 43.59 | 220.61 | 16.47 | 48.44 | 3.58 | 350.16 | 0.3536 | -216.7 | -154.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.61 | 53.90 | 9.03 | 338.53 | 0.4083 | 888.0 | 772.5 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.87 | 50.91 | 6.05 | 342.23 | 0.3350 | -731.0 | -630.4 | |
| 0.80 | 278.84 | 0.43 | 147.66 | 16.37 | 50.58 | 5.71 | 344.42 | 0.3571 | -975.1 | -456.5 | |
| 1.88 | -3.00 | 0.99 | -3.00 | 15.82 | 50.21 | 5.35 | 344.95 | 0.3469 | -1219.5 | 999999 | |
| 10.46 | -3.00 | 5.56 | -3.00 | 16.72 | 50.24 | 5.37 | 345.56 | 0.3612 | -903.6 | 999999 | |
| 27.10 | -3.00 | 14.34 | -3.00 | 16.21 | 50.19 | 5.33 | 345.30 | 0.3529 | -1215.3 | 999999 | |
| 1.70 | -3.00 | 0.90 | -3.00 | 15.76 | 49.99 | 5.13 | 345.50 | 0.3449 | -1271.8 | 999999 | |
| 0.63 | -3.00 | 0.33 | -3.00 | 15.66 | 49.86 | 5.00 | 345.78 | 0.3428 | -1450.9 | 999999 | |
| 2.86 | -3.00 | 1.52 | -3.00 | 16.59 | 49.70 | 4.83 | 346.88 | 0.3570 | -747.6 | 999999 | |
| 6.89 | -3.00 | 3.64 | -3.00 | 16.17 | 49.50 | 4.63 | 347.13 | 0.3496 | -1064.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.11 | 49.38 | 4.51 | 346.72 | 0.3322 | -769.0 | -633.0 | |
| 1.97 | 3.13 | 1.04 | 1.65 | 15.56 | 49.11 | 4.24 | 347.80 | 0.3384 | -945.5 | -843.6 | |
| 3.04 | 3.67 | 1.60 | 1.93 | 15.75 | 48.29 | 3.42 | 350.19 | 0.3389 | -932.3 | -878.9 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.62 | 48.13 | 3.27 | 351.49 | 0.3687 | 714.0 | 571.7 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 19.25 | 48.07 | 3.20 | 352.29 | 0.3947 | -855.0 | -627.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 19.28 | 47.75 | 2.88 | 353.06 | 0.3946 | -630.0 | -568.9 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 16.16 | 47.64 | 2.77 | 352.21 | 0.3440 | -305.0 | -220.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.90 | 47.16 | 2.29 | 353.45 | 0.3388 | -833.0 | -722.0 | |
| 1.16 | 5.28 | 0.61 | 2.79 | 16.52 | 47.14 | 2.27 | 353.73 | 0.3487 | -564.5 | -603.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 18.00 | 46.14 | 1.27 | 356.74 | 0.3716 | 819.0 | 677.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.97 | 45.56 | 0.70 | 358.21 | 0.3707 | 749.0 | 516.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.65 | 45.53 | 0.66 | 358.26 | 0.3653 | 744.0 | 568.1 | |
| 1.97 | 84.15 | 1.04 | 44.55 | 17.19 | 45.21 | 0.35 | 359.07 | 0.3578 | 836.7 | 642.2 | |
| 1.79 | -23.00 | 0.95 | -23.00 | 16.96 | 45.05 | 0.19 | 359.49 | 0.3541 | 1030.1 | 999999 | |
| 11.36 | -23.00 | 6.01 | -23.00 | 16.96 | 44.71 | -0.16 | 0.44 | 0.3540 | 1183.5 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.33 | 17.74 | 44.67 | -0.19 | 0.50 | 0.3668 | 608.0 | 491.4 | |
| 0.00 | 2.59 | 0.00 | 1.37 | 16.38 | 44.36 | -0.51 | 1.42 | 0.3446 | 1256.0 | 992.2 | |
| 4.92 | -23.00 | 2.60 | -23.00 | 16.64 | 44.26 | -0.60 | 1.66 | 0.3489 | 1178.5 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.38 | 17.55 | 44.26 | -0.61 | 1.59 | 0.3637 | 793.0 | 630.8 | |
| 0.00 | 2.68 | 0.00 | 1.42 | 17.19 | 44.17 | -0.70 | 1.88 | 0.3579 | 748.0 | 592.7 | |
| 3.85 | 8.23 | 2.03 | 4.34 | 16.42 | 43.95 | -0.92 | 2.56 | 0.3454 | 1042.2 | 867.9 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.22 | 43.82 | -1.05 | 2.80 | 0.3587 | 847.0 | 660.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.77 | 43.82 | -1.05 | 2.86 | 0.3513 | 826.0 | 730.2 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 16.48 | 43.73 | -1.14 | 3.16 | 0.3466 | 738.0 | 626.4 | |
| 0.00 | 2.33 | 0.00 | 1.23 | 16.87 | 43.66 | -1.20 | 3.28 | 0.3530 | 757.0 | 566.2 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 16.93 | 43.41 | -1.46 | 3.95 | 0.3544 | 794.0 | 624.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.12 | 41.85 | -3.01 | 7.31 | 0.3922 | 771.0 | 639.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.06 | 38.30 | -6.56 | 18.04 | 0.3562 | -758.0 | -559.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
