SDO HMI 2011-05-06 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.56 | 430.72 | 56.92 | 230.09 | 16.61 | 48.46 | 7.97 | 339.09 | 0.3743 | -348.3 | -114.6 | |
|
previous
or next observation for the same group /

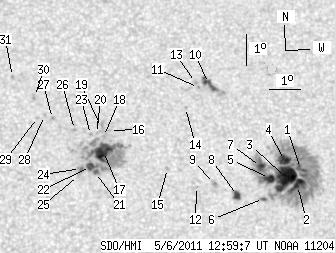

back to the solar disc SDO HMI 2011-05-06 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.92 | 278.75 | 2.64 | 149.24 | 16.51 | 50.78 | 10.30 | 333.48 | 0.3855 | -800.2 | -400.3 | |
| 10.19 | -1.00 | 5.45 | -1.00 | 15.97 | 50.66 | 10.17 | 333.08 | 0.3767 | -1178.4 | 999999 | |
| 31.74 | -1.00 | 16.97 | -1.00 | 16.22 | 50.29 | 9.80 | 334.23 | 0.3777 | -1231.6 | 999999 | |
| 8.76 | -1.00 | 4.70 | -1.00 | 16.77 | 50.28 | 9.80 | 334.88 | 0.3856 | -907.2 | 999999 | |
| 6.70 | -1.00 | 3.58 | -1.00 | 16.18 | 49.77 | 9.29 | 335.37 | 0.3736 | -1073.8 | 999999 | |
| 1.61 | 2.50 | 0.85 | 1.33 | 15.54 | 49.55 | 9.07 | 335.13 | 0.3627 | -956.9 | -802.0 | |
| 3.84 | -1.00 | 2.06 | -1.00 | 16.56 | 49.50 | 9.02 | 336.43 | 0.3775 | -484.6 | 999999 | |
| 5.10 | 6.08 | 2.70 | 3.22 | 15.62 | 48.73 | 8.25 | 337.23 | 0.3586 | -1027.0 | -774.6 | |
| 0.00 | 3.13 | 0.00 | 1.66 | 16.00 | 48.02 | 7.53 | 339.41 | 0.3600 | -843.0 | -541.5 | |
| 8.31 | 14.93 | 4.51 | 8.09 | 19.25 | 47.96 | 7.48 | 342.44 | 0.4090 | -875.1 | -677.4 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 19.11 | 47.63 | 7.15 | 343.06 | 0.4054 | -992.0 | -810.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.90 | 47.44 | 6.96 | 340.76 | 0.3552 | -743.0 | -563.2 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 19.28 | 47.54 | 7.06 | 343.39 | 0.4075 | -782.0 | -669.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.46 | 47.19 | 6.70 | 343.58 | 0.3933 | -643.0 | -520.7 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 16.47 | 46.54 | 6.06 | 343.58 | 0.3596 | -810.0 | -546.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.69 | 44.73 | 4.25 | 349.00 | 0.3719 | 769.0 | 668.9 | |
| 18.95 | 95.30 | 10.06 | 50.53 | 17.01 | 44.53 | 4.05 | 349.16 | 0.3604 | 1076.4 | 633.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.50 | 44.54 | 4.06 | 349.40 | 0.3682 | 734.0 | 645.2 | |
| 0.00 | 5.01 | 0.00 | 2.67 | 17.79 | 44.48 | 4.00 | 349.69 | 0.3727 | 452.0 | 553.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 17.59 | 44.32 | 3.84 | 350.01 | 0.3691 | 598.0 | 504.0 | |
| 1.97 | -17.00 | 1.04 | -17.00 | 16.33 | 44.26 | 3.78 | 349.50 | 0.3486 | 1025.0 | 999999 | |
| 4.47 | -17.00 | 2.36 | -17.00 | 16.52 | 44.11 | 3.62 | 350.02 | 0.3513 | 1203.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.56 | 44.13 | 3.64 | 350.48 | 0.3680 | 715.0 | 556.4 | |
| 0.00 | 3.58 | 0.00 | 1.89 | 16.46 | 43.79 | 3.31 | 350.85 | 0.3494 | 1104.0 | 955.8 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 16.23 | 43.72 | 3.24 | 350.92 | 0.3455 | 876.0 | 747.4 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 17.72 | 43.62 | 3.14 | 351.85 | 0.3693 | 818.0 | 633.7 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 18.08 | 42.93 | 2.44 | 353.74 | 0.3736 | 761.0 | 594.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 18.17 | 42.67 | 2.19 | 354.41 | 0.3748 | 763.0 | 655.1 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.11 | 42.45 | 1.97 | 354.96 | 0.3734 | 761.0 | 507.1 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 18.79 | 42.36 | 1.88 | 355.35 | 0.3843 | 696.0 | 662.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 19.45 | 41.66 | 1.18 | 357.16 | 0.3942 | 664.0 | 530.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
