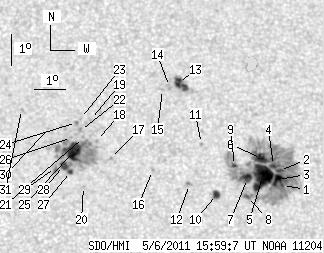

SDO HMI 2011-05-06 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.27 | 430.70 | 53.79 | 231.22 | 16.58 | 48.56 | 9.73 | 335.02 | 0.3848 | -332.3 | -132.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.89 | 282.80 | 0.48 | 152.32 | 15.93 | 50.99 | 12.16 | 328.72 | 0.3917 | -973.3 | -390.4 | |
| 2.59 | -1.00 | 1.40 | -1.00 | 16.41 | 50.92 | 12.09 | 329.51 | 0.3977 | -761.4 | 999999 | |
| 6.26 | -1.00 | 3.37 | -1.00 | 16.12 | 50.84 | 12.01 | 329.29 | 0.3931 | -1152.6 | 999999 | |
| 1.97 | -1.00 | 1.06 | -1.00 | 16.57 | 50.74 | 11.91 | 330.10 | 0.3984 | -974.0 | 999999 | |
| 32.80 | -1.00 | 17.64 | -1.00 | 16.21 | 50.36 | 11.53 | 330.41 | 0.3905 | -1271.3 | 999999 | |
| 8.67 | -1.00 | 4.68 | -1.00 | 16.79 | 50.36 | 11.54 | 331.15 | 0.3986 | -910.4 | 999999 | |
| 6.52 | -1.00 | 3.50 | -1.00 | 16.14 | 49.88 | 11.05 | 331.36 | 0.3857 | -1142.5 | 999999 | |
| 1.34 | -1.00 | 0.72 | -1.00 | 15.56 | 49.84 | 11.02 | 330.67 | 0.3774 | -1084.7 | 999999 | |
| 1.70 | -1.00 | 0.91 | -1.00 | 16.55 | 49.48 | 10.65 | 332.74 | 0.3886 | -668.9 | 999999 | |
| 4.56 | 5.18 | 2.43 | 2.76 | 15.61 | 48.86 | 10.03 | 332.96 | 0.3705 | -1052.3 | -854.9 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 17.25 | 48.46 | 9.63 | 335.80 | 0.3915 | -679.0 | -565.7 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 15.92 | 48.01 | 9.18 | 335.31 | 0.3691 | -541.0 | -580.2 | |
| 5.81 | 16.89 | 3.16 | 9.19 | 19.23 | 47.83 | 9.00 | 339.15 | 0.4167 | -951.2 | -685.4 | |
| 0.00 | 3.49 | 0.00 | 1.89 | 19.10 | 47.53 | 8.70 | 339.66 | 0.4130 | -772.0 | -705.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 19.00 | 47.30 | 8.47 | 340.07 | 0.4102 | -732.0 | -473.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.36 | 46.85 | 8.02 | 338.57 | 0.3682 | 543.0 | 532.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.74 | 45.53 | 6.70 | 342.17 | 0.3667 | -814.0 | -560.1 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.32 | 45.11 | 6.28 | 343.70 | 0.3737 | 685.0 | 569.1 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.00 | 44.94 | 6.11 | 344.63 | 0.3835 | 606.0 | 495.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 15.83 | 44.65 | 5.82 | 343.67 | 0.3483 | 830.0 | 666.1 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.41 | 44.70 | 5.87 | 344.79 | 0.3733 | 741.0 | 629.1 | |
| 0.00 | 2.41 | 0.00 | 1.29 | 17.64 | 44.61 | 5.78 | 345.17 | 0.3765 | 873.0 | 721.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 18.03 | 44.62 | 5.79 | 345.41 | 0.3826 | 502.0 | 433.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.90 | 44.49 | 5.66 | 345.64 | 0.3801 | 768.0 | 670.2 | |
| 19.66 | 100.64 | 10.46 | 53.48 | 16.95 | 44.36 | 5.53 | 345.28 | 0.3648 | 1106.9 | 614.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.41 | 44.31 | 5.48 | 345.73 | 0.3717 | 639.0 | 525.2 | |
| 2.32 | -25.00 | 1.23 | -25.00 | 16.31 | 44.25 | 5.42 | 345.10 | 0.3541 | 1034.7 | 999999 | |
| 5.18 | -25.00 | 2.75 | -25.00 | 16.50 | 44.03 | 5.21 | 345.81 | 0.3563 | 1188.2 | 999999 | |
| 0.00 | 4.20 | 0.00 | 2.22 | 16.44 | 43.78 | 4.95 | 346.43 | 0.3542 | 1046.0 | 819.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.69 | 43.59 | 4.76 | 347.73 | 0.3735 | 767.0 | 573.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 18.31 | 42.74 | 3.92 | 350.15 | 0.3807 | 624.0 | 555.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
