SDO HMI 2011-05-06 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.42 | 424.80 | 52.54 | 229.31 | 16.63 | 48.47 | 11.31 | 331.72 | 0.3971 | -182.5 | -141.5 | |
|
previous
or next observation for the same group /

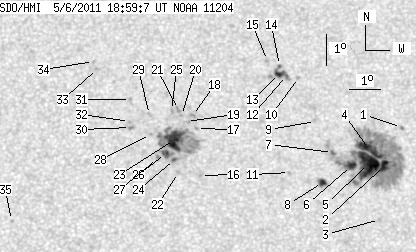

back to the solar disc SDO HMI 2011-05-06 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.83 | 17.41 | 51.64 | 14.47 | 326.27 | 0.4312 | 805.0 | 610.1 | |
| 6.44 | 271.62 | 3.49 | 147.31 | 16.18 | 50.99 | 13.82 | 325.75 | 0.4095 | -1119.2 | -427.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 14.45 | 50.71 | 13.55 | 323.68 | 0.3846 | -784.0 | -552.6 | |
| 15.02 | -2.00 | 8.16 | -2.00 | 16.69 | 50.54 | 13.37 | 327.33 | 0.4122 | -903.6 | 999999 | |
| 29.05 | -2.00 | 15.73 | -2.00 | 16.23 | 50.48 | 13.31 | 326.83 | 0.4056 | -1273.6 | 999999 | |
| 5.36 | -2.00 | 2.90 | -2.00 | 16.16 | 49.92 | 12.75 | 327.82 | 0.3999 | -1130.2 | 999999 | |
| 0.89 | -2.00 | 0.48 | -2.00 | 16.57 | 49.34 | 12.17 | 329.57 | 0.4005 | -741.0 | 999999 | |
| 4.47 | 5.81 | 2.40 | 3.11 | 15.60 | 48.95 | 11.79 | 329.05 | 0.3842 | -1024.9 | -773.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 17.57 | 48.85 | 11.68 | 331.81 | 0.4105 | 656.0 | 623.2 | |
| 0.00 | 1.61 | 0.00 | 0.88 | 19.00 | 48.40 | 11.23 | 334.36 | 0.4272 | -720.0 | -582.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.91 | 47.92 | 10.75 | 331.72 | 0.3801 | -767.0 | -621.1 | |
| 0.89 | 14.12 | 0.49 | 7.72 | 19.06 | 48.01 | 10.84 | 335.19 | 0.4254 | -740.8 | -756.1 | |
| 4.11 | -12.00 | 2.25 | -12.00 | 19.12 | 47.78 | 10.62 | 335.70 | 0.4248 | -1025.5 | 999999 | |
| 0.89 | -12.00 | 0.49 | -12.00 | 19.38 | 47.80 | 10.63 | 335.94 | 0.4287 | -592.5 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 19.54 | 47.42 | 10.25 | 336.86 | 0.4286 | -706.0 | -564.4 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.78 | 45.07 | 7.91 | 338.25 | 0.3587 | 959.0 | 763.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.30 | 45.01 | 7.84 | 339.93 | 0.3812 | 608.0 | 404.4 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 17.72 | 44.90 | 7.73 | 340.58 | 0.3870 | 698.0 | 638.2 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.52 | 44.70 | 7.53 | 340.87 | 0.3829 | 728.0 | 618.7 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.71 | 44.55 | 7.38 | 341.39 | 0.3851 | 831.0 | 725.6 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 17.91 | 44.46 | 7.29 | 341.77 | 0.3876 | 896.0 | 692.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.87 | 44.38 | 7.21 | 340.09 | 0.3560 | 885.0 | 697.5 | |
| 24.13 | 98.58 | 12.87 | 52.55 | 16.93 | 44.29 | 7.12 | 341.31 | 0.3718 | 1073.4 | 576.7 | |
| 1.52 | -23.00 | 0.81 | -23.00 | 16.29 | 44.27 | 7.10 | 340.77 | 0.3618 | 1039.8 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 17.87 | 44.23 | 7.07 | 342.26 | 0.3859 | 734.0 | 654.2 | |
| 4.65 | -23.00 | 2.47 | -23.00 | 16.48 | 43.99 | 6.82 | 341.65 | 0.3633 | 1175.8 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.28 | 16.32 | 43.73 | 6.56 | 342.16 | 0.3595 | 938.0 | 874.3 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.09 | 43.53 | 6.37 | 343.30 | 0.3705 | 801.0 | 699.6 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 17.74 | 43.53 | 6.36 | 343.84 | 0.3805 | 601.0 | 540.7 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 17.31 | 42.91 | 5.74 | 345.04 | 0.3712 | 1042.0 | 839.2 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 18.22 | 42.93 | 5.77 | 345.61 | 0.3855 | 832.0 | 591.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.51 | 42.88 | 5.71 | 345.24 | 0.3741 | 675.0 | 602.2 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 19.23 | 41.91 | 4.74 | 348.64 | 0.3977 | 789.0 | 647.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 19.46 | 41.79 | 4.62 | 349.04 | 0.4009 | 691.0 | 537.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.31 | 39.10 | 1.93 | 353.95 | 0.3111 | -645.0 | -571.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
