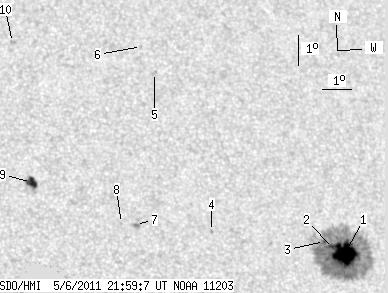

SDO HMI 2011-05-06 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.41 | 258.91 | 26.62 | 152.57 | 18.19 | 60.25 | 24.74 | 312.76 | 0.5438 | -541.2 | -355.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.67 | 236.82 | 21.10 | 140.00 | 17.93 | 61.01 | 25.50 | 311.42 | 0.5484 | -1152.7 | -421.0 | |
| 0.80 | -1.00 | 0.47 | -1.00 | 18.08 | 60.65 | 25.14 | 312.04 | 0.5459 | -1015.1 | 999999 | |
| 1.34 | -1.00 | 0.79 | -1.00 | 18.30 | 60.36 | 24.86 | 312.66 | 0.5448 | -639.6 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 18.53 | 56.48 | 20.98 | 317.70 | 0.5063 | 765.0 | 642.1 | |
| 0.00 | 2.15 | 0.00 | 1.27 | 23.80 | 55.27 | 19.76 | 325.91 | 0.5540 | 655.0 | 548.1 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 24.68 | 54.95 | 19.45 | 327.28 | 0.5617 | 679.0 | 541.4 | |
| 0.00 | 2.86 | 0.00 | 1.62 | 18.70 | 53.92 | 18.42 | 321.53 | 0.4831 | 990.0 | 784.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 18.72 | 53.46 | 17.95 | 322.27 | 0.4789 | 647.0 | 506.3 | |
| 7.60 | 11.18 | 4.26 | 6.26 | 20.02 | 50.58 | 15.07 | 328.51 | 0.4697 | 879.1 | 444.7 | |
| 0.00 | 2.24 | 0.00 | 1.30 | 24.73 | 50.46 | 14.95 | 333.63 | 0.5298 | 641.0 | 530.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
