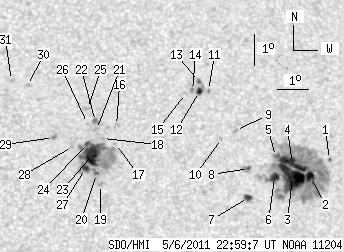

SDO HMI 2011-05-06 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.33 | 394.04 | 54.06 | 214.68 | 16.65 | 48.58 | 13.63 | 327.09 | 0.4159 | -240.9 | -115.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-06 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 1.25 | 0.54 | 0.69 | 16.83 | 51.88 | 16.92 | 321.21 | 0.4466 | 526.9 | 485.7 | |
| 5.63 | 250.62 | 3.09 | 137.45 | 16.27 | 51.20 | 16.25 | 321.50 | 0.4333 | -899.3 | -399.2 | |
| 32.64 | -2.00 | 17.86 | -2.00 | 16.26 | 50.61 | 15.66 | 322.50 | 0.4274 | -1174.7 | 999999 | |
| 15.83 | -2.00 | 8.69 | -2.00 | 16.68 | 50.65 | 15.69 | 323.06 | 0.4329 | -832.8 | 999999 | |
| 1.43 | -2.00 | 0.78 | -2.00 | 16.90 | 50.11 | 15.15 | 324.31 | 0.4306 | -524.4 | 999999 | |
| 5.63 | -2.00 | 3.07 | -2.00 | 16.22 | 50.02 | 15.07 | 323.49 | 0.4213 | -1036.6 | 999999 | |
| 4.11 | 5.19 | 2.23 | 2.81 | 15.56 | 49.12 | 14.17 | 324.17 | 0.4046 | -932.9 | -695.5 | |
| 1.52 | 4.92 | 0.83 | 2.68 | 16.50 | 49.19 | 14.24 | 325.40 | 0.4171 | -782.7 | -420.2 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 17.72 | 48.86 | 13.91 | 327.68 | 0.4301 | 884.0 | 660.1 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.45 | 48.39 | 13.43 | 328.22 | 0.4226 | -632.0 | -513.5 | |
| 0.00 | 1.61 | 0.00 | 0.89 | 19.01 | 48.08 | 13.13 | 330.73 | 0.4410 | -772.0 | -641.4 | |
| 2.86 | 7.78 | 1.58 | 4.29 | 18.97 | 47.78 | 12.83 | 331.24 | 0.4382 | -905.7 | -650.7 | |
| 1.52 | -12.00 | 0.84 | -12.00 | 19.30 | 47.81 | 12.86 | 331.57 | 0.4429 | -627.4 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 19.00 | 47.56 | 12.60 | 331.70 | 0.4369 | -892.0 | -788.0 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 18.90 | 47.32 | 12.37 | 332.03 | 0.4338 | -688.0 | -547.8 | |
| 0.00 | 3.58 | 0.00 | 1.93 | 17.83 | 45.01 | 10.05 | 335.50 | 0.4024 | 562.0 | 490.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.24 | 44.94 | 9.99 | 334.99 | 0.3935 | 508.0 | 347.3 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.40 | 44.53 | 9.58 | 336.06 | 0.3931 | 734.0 | 581.8 | |
| 0.00 | 1.88 | 0.00 | 1.00 | 15.92 | 44.39 | 9.44 | 334.68 | 0.3705 | 853.0 | 676.3 | |
| 1.43 | 92.81 | 0.76 | 49.72 | 16.27 | 44.28 | 9.33 | 335.36 | 0.3749 | 898.1 | 551.6 | |
| 0.00 | 2.59 | 0.00 | 1.40 | 17.69 | 44.35 | 9.40 | 336.76 | 0.3962 | 686.0 | 638.8 | |
| 0.00 | 3.13 | 0.00 | 1.69 | 17.95 | 44.34 | 9.38 | 337.07 | 0.3999 | 801.0 | 687.0 | |
| 20.12 | -20.00 | 10.78 | -20.00 | 16.88 | 44.18 | 9.23 | 336.27 | 0.3832 | 1058.5 | 999999 | |
| 1.79 | -20.00 | 0.96 | -20.00 | 17.23 | 44.04 | 9.09 | 336.98 | 0.3875 | 736.1 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 18.37 | 44.10 | 9.15 | 338.01 | 0.4046 | 682.0 | 499.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.88 | 44.08 | 9.12 | 337.58 | 0.3972 | 629.0 | 442.0 | |
| 3.84 | -20.00 | 2.05 | -20.00 | 16.43 | 43.94 | 8.99 | 336.34 | 0.3749 | 1121.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.13 | 43.56 | 8.60 | 337.98 | 0.3830 | 763.0 | 580.3 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 17.42 | 42.96 | 8.01 | 339.64 | 0.3838 | 1057.0 | 820.9 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 19.11 | 42.20 | 7.25 | 342.82 | 0.4054 | 828.0 | 673.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 19.27 | 41.69 | 6.74 | 344.08 | 0.4056 | 773.0 | 576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
