SDO HMI 2011-05-07 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.58 | 373.85 | 48.85 | 206.89 | 16.61 | 49.01 | 16.82 | 321.32 | 0.4441 | -271.5 | -167.7 | |
|
previous
or next observation for the same group /

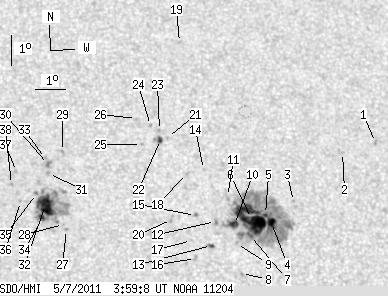

back to the solar disc SDO HMI 2011-05-07 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.15 | 18.99 | 55.28 | 23.08 | 315.64 | 0.5323 | 830.0 | 674.8 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 18.64 | 54.08 | 21.89 | 316.62 | 0.5163 | 846.0 | 659.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 17.00 | 52.21 | 20.02 | 316.75 | 0.4796 | 438.0 | 398.9 | |
| 5.55 | 246.57 | 3.10 | 137.47 | 16.31 | 51.40 | 19.20 | 316.85 | 0.4635 | -1005.1 | -386.3 | |
| 0.89 | -4.00 | 0.50 | -4.00 | 16.56 | 51.22 | 19.03 | 317.50 | 0.4645 | -695.3 | 999999 | |
| 44.38 | -4.00 | 24.70 | -4.00 | 16.42 | 50.74 | 18.55 | 318.00 | 0.4579 | -1090.2 | 999999 | |
| 2.33 | -4.00 | 1.29 | -4.00 | 15.87 | 50.66 | 18.46 | 317.29 | 0.4509 | -1012.9 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 14.65 | 50.25 | 18.05 | 315.94 | 0.4330 | -718.0 | -597.7 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 15.61 | 50.17 | 17.97 | 317.62 | 0.4427 | -730.0 | -666.9 | |
| 5.37 | -4.00 | 2.97 | -4.00 | 16.22 | 50.16 | 17.96 | 318.59 | 0.4495 | -1034.0 | 999999 | |
| 0.00 | 2.24 | 0.00 | 1.25 | 17.12 | 50.01 | 17.82 | 320.16 | 0.4584 | -559.0 | -464.5 | |
| 0.00 | 2.59 | 0.00 | 1.43 | 16.30 | 49.54 | 17.34 | 319.70 | 0.4441 | -769.0 | -659.5 | |
| 1.70 | 3.04 | 0.93 | 1.67 | 15.53 | 49.34 | 17.14 | 318.82 | 0.4331 | -820.7 | -705.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 17.98 | 49.30 | 17.11 | 322.51 | 0.4616 | -606.0 | -477.9 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 16.48 | 48.90 | 16.70 | 321.02 | 0.4398 | -895.0 | -721.8 | |
| 0.00 | 2.42 | 0.00 | 1.32 | 15.10 | 48.78 | 16.58 | 319.07 | 0.4224 | -843.0 | -607.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | 15.68 | 48.69 | 16.50 | 320.12 | 0.4282 | -429.0 | -553.0 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 17.84 | 48.72 | 16.53 | 323.25 | 0.4545 | 666.0 | 484.7 | |
| 0.00 | 1.52 | 0.00 | 0.87 | 22.17 | 48.96 | 16.77 | 328.26 | 0.5099 | 621.0 | 445.9 | |
| 0.00 | 2.86 | 0.00 | 1.57 | 16.34 | 48.09 | 15.90 | 322.16 | 0.4303 | -782.0 | -609.9 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 19.00 | 48.21 | 16.01 | 325.66 | 0.4642 | -829.0 | -661.8 | |
| 2.59 | 5.19 | 1.45 | 2.89 | 18.93 | 47.97 | 15.77 | 325.96 | 0.4612 | -974.5 | -726.9 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 19.23 | 47.96 | 15.77 | 326.35 | 0.4649 | -785.0 | -571.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 19.39 | 47.68 | 15.48 | 327.02 | 0.4645 | -734.0 | -604.5 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 18.76 | 47.32 | 15.12 | 326.83 | 0.4534 | -682.0 | -568.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 19.61 | 47.23 | 15.04 | 328.04 | 0.4636 | -620.0 | -403.9 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 15.96 | 44.65 | 12.46 | 328.09 | 0.3940 | 912.0 | 711.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 16.12 | 44.57 | 12.37 | 328.48 | 0.3955 | 697.0 | 548.4 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 18.49 | 44.70 | 12.50 | 331.25 | 0.4287 | 631.0 | 497.0 | |
| 0.00 | 3.31 | 0.00 | 1.80 | 18.06 | 44.21 | 12.02 | 331.69 | 0.4191 | 808.0 | 684.4 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 17.76 | 44.19 | 12.00 | 331.37 | 0.4149 | 920.0 | 726.0 | |
| 22.46 | 76.76 | 12.13 | 41.47 | 16.76 | 44.03 | 11.83 | 330.45 | 0.3997 | 1076.9 | 556.7 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 18.25 | 44.13 | 11.93 | 332.08 | 0.4211 | 503.0 | 456.3 | |
| 3.31 | -32.00 | 1.78 | -32.00 | 16.34 | 43.91 | 11.71 | 330.15 | 0.3930 | 1207.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 17.11 | 43.76 | 11.56 | 331.45 | 0.4025 | 845.0 | 666.0 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 16.84 | 43.23 | 11.03 | 332.23 | 0.3948 | 733.0 | 639.6 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.82 | 43.16 | 10.96 | 333.54 | 0.4080 | 687.0 | 522.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 17.39 | 42.97 | 10.77 | 333.44 | 0.4006 | 865.0 | 607.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
