SDO HMI 2011-05-07 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.48 | 304.89 | 40.38 | 178.95 | 16.49 | 49.92 | 25.42 | 309.44 | 0.5343 | -227.6 | -240.3 | |
|
previous
or next observation for the same group /

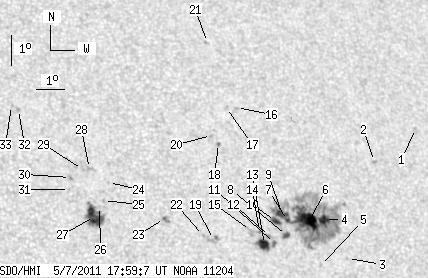

back to the solar disc SDO HMI 2011-05-07 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.62 | 19.54 | 55.87 | 31.37 | 308.00 | 0.6248 | 609.0 | 494.3 | |
| 0.00 | 1.70 | 0.00 | 1.05 | 18.41 | 54.11 | 29.61 | 307.96 | 0.5969 | 750.0 | 682.4 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 15.23 | 52.61 | 28.10 | 304.69 | 0.5549 | -684.0 | -504.7 | |
| 6.53 | 215.32 | 3.89 | 127.61 | 16.46 | 51.97 | 27.47 | 307.15 | 0.5571 | -829.4 | -382.5 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 14.98 | 51.61 | 27.11 | 305.23 | 0.5410 | 460.0 | 301.9 | |
| 18.33 | -4.00 | 10.86 | -4.00 | 16.42 | 51.43 | 26.93 | 307.60 | 0.5505 | -1119.9 | 999999 | |
| 1.34 | -4.00 | 0.79 | -4.00 | 16.39 | 50.65 | 26.15 | 308.36 | 0.5413 | -991.1 | 999999 | |
| 3.49 | -4.00 | 2.04 | -4.00 | 15.91 | 50.55 | 26.05 | 307.73 | 0.5360 | -930.3 | 999999 | |
| 6.44 | -4.00 | 3.79 | -4.00 | 16.58 | 50.50 | 26.00 | 308.80 | 0.5412 | -867.1 | 999999 | |
| 4.92 | -4.00 | 2.88 | -4.00 | 16.35 | 50.22 | 25.72 | 308.73 | 0.5360 | -928.0 | 999999 | |
| 0.98 | 2.68 | 0.57 | 1.56 | 15.64 | 50.09 | 25.59 | 307.78 | 0.5283 | -953.0 | -747.2 | |
| 0.00 | 2.59 | 0.00 | 1.51 | 15.86 | 49.95 | 25.45 | 308.28 | 0.5285 | -894.0 | -667.9 | |
| 9.12 | 12.16 | 5.30 | 7.06 | 15.60 | 49.74 | 25.24 | 308.09 | 0.5238 | -1056.8 | -749.9 | |
| 0.00 | 1.52 | 0.00 | 0.88 | 16.01 | 49.62 | 25.12 | 308.86 | 0.5261 | -803.0 | -652.5 | |
| 0.00 | 5.54 | 0.00 | 3.22 | 16.04 | 49.31 | 24.81 | 309.24 | 0.5227 | -495.0 | -405.9 | |
| 0.00 | 1.52 | 0.00 | 0.91 | 20.04 | 49.43 | 24.92 | 314.88 | 0.5609 | -540.0 | -340.2 | |
| 0.00 | 1.88 | 0.00 | 1.12 | 20.03 | 49.07 | 24.57 | 315.27 | 0.5571 | -472.0 | -372.6 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 18.83 | 48.60 | 24.09 | 314.16 | 0.5407 | -858.0 | -752.2 | |
| 0.00 | 6.08 | 0.00 | 3.48 | 15.71 | 47.99 | 23.49 | 310.22 | 0.5046 | 385.0 | 304.5 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 19.09 | 48.39 | 23.89 | 314.76 | 0.5410 | -729.0 | -590.9 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 22.18 | 48.77 | 24.27 | 318.40 | 0.5754 | 639.0 | 553.2 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 15.83 | 47.66 | 23.16 | 310.80 | 0.5019 | 520.0 | 418.7 | |
| 0.45 | 3.67 | 0.25 | 2.08 | 16.35 | 46.40 | 21.89 | 313.17 | 0.4926 | 901.6 | 736.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 17.47 | 44.63 | 20.13 | 317.21 | 0.4852 | 658.0 | 552.9 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 16.88 | 44.40 | 19.89 | 316.66 | 0.4764 | 745.0 | 534.4 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 16.68 | 44.24 | 19.74 | 316.59 | 0.4726 | 615.0 | 488.8 | |
| 17.88 | 28.26 | 10.01 | 15.81 | 16.36 | 44.04 | 19.54 | 316.38 | 0.4670 | 1003.1 | 745.1 | |
| 0.00 | 4.11 | 0.00 | 2.33 | 17.91 | 44.04 | 19.54 | 318.68 | 0.4839 | 673.0 | 502.5 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 17.87 | 43.80 | 19.30 | 318.97 | 0.4811 | 627.0 | 541.8 | |
| 0.00 | 2.06 | 0.00 | 1.16 | 17.60 | 43.37 | 18.86 | 319.22 | 0.4737 | 849.0 | 735.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 17.21 | 43.29 | 18.79 | 318.76 | 0.4686 | 945.0 | 799.0 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 19.79 | 41.86 | 17.36 | 324.47 | 0.4850 | 770.0 | 572.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 19.92 | 41.64 | 17.14 | 324.97 | 0.4846 | 583.0 | 530.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
