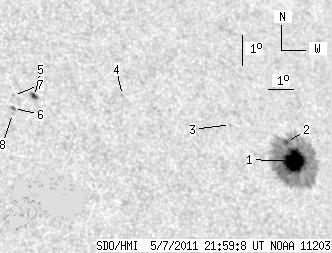

SDO HMI 2011-05-07 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.31 | 204.65 | 24.72 | 140.00 | 18.07 | 60.68 | 38.40 | 301.10 | 0.6915 | -683.9 | -325.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-07 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.13 | 194.63 | 21.39 | 133.73 | 17.97 | 61.08 | 38.80 | 300.67 | 0.6952 | -1028.4 | -352.8 | |
| 1.70 | -1.00 | 1.17 | -1.00 | 18.58 | 60.92 | 38.63 | 301.56 | 0.6968 | -460.1 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.72 | 19.09 | 58.79 | 36.50 | 303.56 | 0.6769 | -315.0 | -132.2 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 19.89 | 54.77 | 32.48 | 307.55 | 0.6392 | 515.0 | 421.3 | |
| 2.41 | 3.76 | 1.50 | 2.33 | 19.75 | 51.44 | 29.15 | 310.21 | 0.6025 | 720.7 | 620.9 | |
| 1.07 | 2.24 | 0.66 | 1.37 | 19.33 | 50.58 | 28.30 | 310.44 | 0.5899 | 640.0 | 587.8 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 19.76 | 50.67 | 28.38 | 310.94 | 0.5944 | 494.0 | 487.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 19.16 | 50.52 | 28.23 | 310.28 | 0.5878 | 696.0 | 613.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
