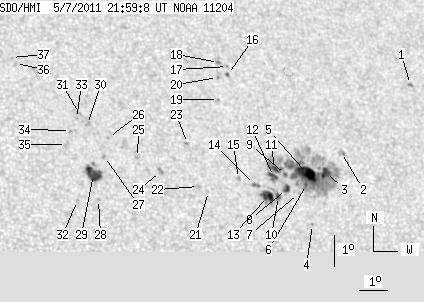

SDO HMI 2011-05-07 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.21 | 286.22 | 42.33 | 171.53 | 16.50 | 50.07 | 27.78 | 307.04 | 0.5612 | -192.3 | -263.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-07 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.99 | 19.51 | 55.98 | 33.70 | 306.10 | 0.6495 | 658.0 | 572.8 | |
| 0.00 | 3.76 | 0.00 | 2.32 | 17.19 | 52.89 | 30.61 | 305.37 | 0.5988 | -42.0 | 49.4 | |
| 6.80 | 199.28 | 4.15 | 120.65 | 16.52 | 52.19 | 29.90 | 305.01 | 0.5857 | -777.2 | -392.8 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 14.84 | 51.45 | 29.16 | 303.12 | 0.5646 | 505.0 | 365.4 | |
| 17.35 | -3.00 | 10.51 | -3.00 | 16.47 | 51.53 | 29.24 | 305.51 | 0.5776 | -941.0 | 999999 | |
| 1.07 | -3.00 | 0.65 | -3.00 | 16.11 | 51.43 | 29.15 | 305.06 | 0.5738 | -763.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 15.82 | 51.10 | 28.81 | 304.92 | 0.5676 | -471.0 | -498.2 | |
| 3.76 | -3.00 | 2.25 | -3.00 | 15.93 | 50.68 | 28.40 | 305.46 | 0.5636 | -862.1 | 999999 | |
| 1.25 | -3.00 | 0.75 | -3.00 | 16.41 | 50.72 | 28.44 | 306.15 | 0.5679 | -907.8 | 999999 | |
| 2.06 | 22.90 | 1.23 | 13.61 | 15.70 | 50.36 | 28.08 | 305.40 | 0.5580 | -781.6 | -575.2 | |
| 7.16 | -3.00 | 4.29 | -3.00 | 16.60 | 50.36 | 28.07 | 306.76 | 0.5651 | -781.4 | 999999 | |
| 4.92 | -3.00 | 2.94 | -3.00 | 16.34 | 50.28 | 28.00 | 306.44 | 0.5621 | -929.8 | 999999 | |
| 9.93 | -10.00 | 5.90 | -10.00 | 15.69 | 49.97 | 27.68 | 305.75 | 0.5533 | -992.5 | 999999 | |
| 1.34 | 3.58 | 0.80 | 2.12 | 16.06 | 49.56 | 27.28 | 306.71 | 0.5515 | -745.6 | -744.2 | |
| 0.00 | 1.88 | 0.00 | 1.11 | 16.23 | 49.02 | 26.74 | 307.51 | 0.5466 | -834.0 | -658.9 | |
| 0.54 | 1.34 | 0.33 | 0.81 | 19.61 | 49.19 | 26.90 | 312.20 | 0.5775 | -381.5 | -340.9 | |
| 0.00 | 1.34 | 0.00 | 0.81 | 19.88 | 49.24 | 26.95 | 312.51 | 0.5804 | -532.0 | -373.3 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 20.00 | 48.93 | 26.65 | 312.99 | 0.5783 | -757.0 | -615.3 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 18.78 | 48.72 | 26.43 | 311.53 | 0.5651 | -623.0 | -516.3 | |
| 0.00 | 1.16 | 0.00 | 0.70 | 19.51 | 48.81 | 26.52 | 312.44 | 0.5725 | -748.0 | -638.2 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 15.79 | 47.91 | 25.62 | 307.96 | 0.5298 | 683.0 | 497.9 | |
| 0.00 | 2.24 | 0.00 | 1.30 | 15.94 | 47.58 | 25.29 | 308.54 | 0.5273 | 360.0 | 321.9 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 17.32 | 47.39 | 25.10 | 310.83 | 0.5374 | 744.0 | 530.2 | |
| 0.00 | 3.31 | 0.00 | 1.91 | 16.39 | 46.32 | 24.03 | 310.63 | 0.5169 | 919.0 | 691.6 | |
| 0.00 | 2.06 | 0.00 | 1.19 | 16.82 | 45.58 | 23.30 | 312.14 | 0.5126 | 777.0 | 547.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 17.44 | 44.67 | 22.38 | 314.19 | 0.5087 | 722.0 | 576.9 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 16.82 | 44.45 | 22.17 | 313.53 | 0.5002 | 789.0 | 626.1 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 15.43 | 44.09 | 21.80 | 311.83 | 0.4824 | 755.0 | 617.3 | |
| 15.03 | 20.04 | 8.53 | 11.37 | 16.23 | 44.01 | 21.72 | 313.19 | 0.4894 | 989.7 | 660.8 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 17.85 | 44.00 | 21.71 | 315.63 | 0.5056 | 753.0 | 583.5 | |
| 0.00 | 2.24 | 0.00 | 1.28 | 18.20 | 43.77 | 21.49 | 316.43 | 0.5069 | 554.0 | 505.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 15.38 | 43.37 | 21.09 | 312.68 | 0.4738 | 785.0 | 567.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 18.03 | 43.65 | 21.36 | 316.36 | 0.5039 | 766.0 | 632.5 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 17.64 | 43.39 | 21.11 | 316.12 | 0.4971 | 739.0 | 574.0 | |
| 0.00 | 2.24 | 0.00 | 1.27 | 17.18 | 43.20 | 20.92 | 315.69 | 0.4903 | 768.0 | 629.4 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 19.79 | 41.79 | 19.50 | 321.31 | 0.5045 | 718.0 | 511.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 19.98 | 41.68 | 19.39 | 321.72 | 0.5057 | 666.0 | 545.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
