SDO HMI 2011-05-08 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.93 | 233.08 | 39.35 | 145.67 | 16.73 | 50.34 | 31.91 | 303.70 | 0.6102 | -413.4 | -282.5 | |
|
previous
or next observation for the same group /

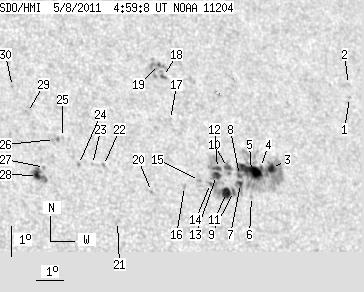

back to the solar disc SDO HMI 2011-05-08 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.67 | 19.11 | 56.03 | 37.60 | 302.84 | 0.6885 | 580.0 | 536.1 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 19.54 | 56.10 | 37.68 | 303.34 | 0.6918 | 593.0 | 492.3 | |
| 5.28 | 119.95 | 3.37 | 76.02 | 16.68 | 52.39 | 33.96 | 302.00 | 0.6334 | -851.9 | -373.1 | |
| 0.36 | -3.00 | 0.23 | -3.00 | 16.70 | 51.98 | 33.55 | 302.33 | 0.6287 | 71.2 | 999999 | |
| 23.36 | -3.00 | 14.77 | -3.00 | 16.55 | 51.61 | 33.18 | 302.40 | 0.6235 | -892.9 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.79 | 15.75 | 51.45 | 33.03 | 301.36 | 0.6165 | -216.0 | -188.6 | |
| 2.60 | -3.00 | 1.63 | -3.00 | 16.15 | 51.12 | 32.69 | 302.19 | 0.6152 | -863.3 | 999999 | |
| 1.97 | -3.00 | 1.24 | -3.00 | 16.41 | 51.13 | 32.70 | 302.55 | 0.6170 | -905.0 | 999999 | |
| 2.15 | 51.29 | 1.34 | 31.89 | 15.89 | 50.80 | 32.38 | 302.04 | 0.6098 | -717.0 | -502.7 | |
| 3.04 | 8.68 | 1.91 | 5.44 | 16.65 | 50.72 | 32.30 | 303.20 | 0.6140 | -690.1 | -628.7 | |
| 7.61 | -9.00 | 4.73 | -9.00 | 15.84 | 50.54 | 32.11 | 302.18 | 0.6064 | -1017.1 | 999999 | |
| 3.40 | -9.00 | 2.12 | -9.00 | 16.61 | 50.34 | 31.91 | 303.43 | 0.6093 | -754.7 | 999999 | |
| 4.74 | -9.00 | 2.95 | -9.00 | 16.38 | 50.26 | 31.83 | 303.17 | 0.6068 | -980.8 | 999999 | |
| 0.90 | -9.00 | 0.55 | -9.00 | 16.11 | 49.99 | 31.56 | 302.99 | 0.6018 | -884.2 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.99 | 16.20 | 49.60 | 31.17 | 303.43 | 0.5978 | -831.0 | -583.4 | |
| 0.00 | 1.79 | 0.00 | 1.10 | 15.99 | 49.01 | 30.58 | 303.59 | 0.5894 | -674.0 | -491.4 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 18.14 | 48.89 | 30.46 | 306.79 | 0.6038 | -504.0 | -399.5 | |
| 1.52 | 4.03 | 0.95 | 2.53 | 19.55 | 48.91 | 30.49 | 308.70 | 0.6148 | -586.8 | -572.3 | |
| 1.43 | 13.16 | 0.90 | 8.25 | 19.94 | 48.85 | 30.42 | 309.29 | 0.6172 | -588.9 | -602.7 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 15.79 | 47.78 | 29.35 | 304.34 | 0.5734 | 675.0 | 593.0 | |
| 0.00 | 2.15 | 0.00 | 1.27 | 14.79 | 46.41 | 27.98 | 304.03 | 0.5495 | 674.0 | 582.3 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 16.57 | 46.18 | 27.75 | 306.97 | 0.5608 | 581.0 | 502.6 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 16.59 | 45.79 | 27.36 | 307.38 | 0.5564 | 690.0 | 523.4 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 16.58 | 45.29 | 26.86 | 307.85 | 0.5505 | 792.0 | 655.7 | |
| 0.00 | 0.63 | 0.00 | 0.37 | 17.44 | 44.85 | 26.43 | 309.56 | 0.5529 | 497.0 | 430.0 | |
| 0.00 | 3.40 | 0.00 | 2.01 | 17.37 | 44.56 | 26.13 | 309.75 | 0.5489 | 700.0 | 658.2 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 16.45 | 44.07 | 25.65 | 308.90 | 0.5354 | 649.0 | 513.2 | |
| 4.57 | 12.71 | 2.66 | 7.42 | 16.19 | 43.79 | 25.36 | 308.79 | 0.5299 | 1046.4 | 808.3 | |
| 0.00 | 2.51 | 0.00 | 1.48 | 18.22 | 43.74 | 25.31 | 311.87 | 0.5475 | 677.0 | 448.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 19.06 | 43.34 | 24.92 | 313.49 | 0.5510 | 700.0 | 547.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
