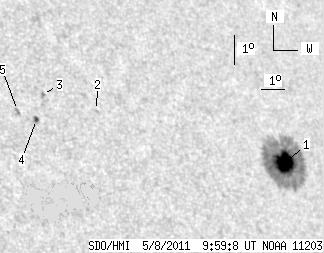

SDO HMI 2011-05-08 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.21 | 181.54 | 20.63 | 138.04 | 18.05 | 60.74 | 45.05 | 297.50 | 0.7604 | -770.8 | -291.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.33 | 173.38 | 19.39 | 132.64 | 18.00 | 61.13 | 45.44 | 297.21 | 0.7642 | -1094.2 | -322.8 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 19.37 | 53.48 | 37.79 | 303.02 | 0.6918 | 554.0 | 443.0 | |
| 0.00 | 2.51 | 0.00 | 1.67 | 19.82 | 51.43 | 35.74 | 304.96 | 0.6728 | 770.0 | 567.0 | |
| 1.88 | 2.51 | 1.24 | 1.65 | 18.99 | 50.98 | 35.29 | 304.18 | 0.6626 | 801.0 | 650.9 | |
| 0.00 | 2.24 | 0.00 | 1.47 | 19.26 | 50.30 | 34.61 | 305.02 | 0.6570 | 684.0 | 581.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
