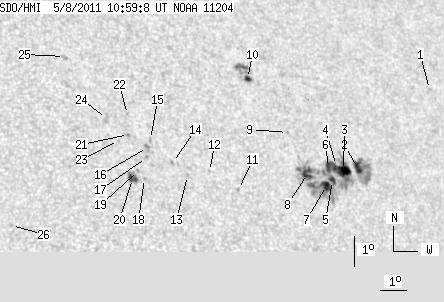

SDO HMI 2011-05-08 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.53 | 220.06 | 30.86 | 142.69 | 16.83 | 50.20 | 35.06 | 301.55 | 0.6466 | -248.2 | -325.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 10:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.96 | 19.44 | 56.07 | 40.93 | 301.24 | 0.7249 | 677.0 | 524.6 | |
| 6.35 | 33.83 | 4.23 | 22.59 | 16.76 | 52.39 | 37.25 | 299.91 | 0.6709 | -760.1 | -171.6 | |
| 10.38 | 135.50 | 6.86 | 88.53 | 16.64 | 51.81 | 36.67 | 300.11 | 0.6637 | -920.3 | -570.9 | |
| 0.63 | -3.00 | 0.41 | -3.00 | 16.80 | 51.57 | 36.43 | 300.47 | 0.6619 | -643.3 | 999999 | |
| 4.21 | -3.00 | 2.75 | -3.00 | 16.30 | 51.30 | 36.16 | 299.97 | 0.6560 | -788.0 | 999999 | |
| 3.40 | -3.00 | 2.23 | -3.00 | 16.72 | 51.24 | 36.10 | 300.58 | 0.6577 | -795.8 | 999999 | |
| 6.00 | -3.00 | 3.91 | -3.00 | 16.13 | 51.03 | 35.89 | 299.90 | 0.6519 | -1052.2 | 999999 | |
| 8.06 | -3.00 | 5.22 | -3.00 | 16.49 | 50.37 | 35.23 | 300.84 | 0.6465 | -872.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 17.80 | 49.88 | 34.74 | 302.97 | 0.6490 | -511.0 | -471.4 | |
| 3.04 | 14.41 | 1.97 | 9.35 | 19.52 | 48.73 | 33.59 | 306.11 | 0.6477 | -683.0 | -647.8 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 15.89 | 47.63 | 32.49 | 301.91 | 0.6108 | 708.0 | 561.8 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 16.43 | 46.65 | 31.51 | 303.46 | 0.6030 | 638.0 | 525.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 16.28 | 45.81 | 30.67 | 303.91 | 0.5921 | 627.0 | 519.3 | |
| 0.00 | 1.25 | 0.00 | 0.77 | 16.68 | 45.33 | 30.19 | 304.89 | 0.5895 | 850.0 | 617.3 | |
| 0.00 | 1.88 | 0.00 | 1.15 | 17.40 | 44.65 | 29.51 | 306.52 | 0.5871 | 647.0 | 494.2 | |
| 0.00 | 3.13 | 0.00 | 1.91 | 17.14 | 44.49 | 29.36 | 306.28 | 0.5833 | 915.0 | 735.1 | |
| 0.00 | 1.61 | 0.00 | 0.98 | 16.81 | 44.40 | 29.26 | 305.89 | 0.5798 | 819.0 | 655.7 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 16.13 | 44.22 | 29.08 | 305.05 | 0.5724 | 575.0 | 473.0 | |
| 0.00 | 1.25 | 0.00 | 0.76 | 16.38 | 44.04 | 28.90 | 305.58 | 0.5723 | 650.0 | 443.6 | |
| 5.46 | 8.68 | 3.28 | 5.22 | 16.12 | 43.78 | 28.64 | 305.42 | 0.5672 | 869.0 | 720.3 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 17.54 | 43.87 | 28.74 | 307.42 | 0.5794 | 871.0 | 759.4 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 18.19 | 43.95 | 28.82 | 308.28 | 0.5855 | 515.0 | 427.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 17.33 | 43.48 | 28.34 | 307.49 | 0.5732 | 650.0 | 578.6 | |
| 0.00 | 5.19 | 0.00 | 3.14 | 18.03 | 43.17 | 28.03 | 308.80 | 0.5754 | 729.0 | 535.2 | |
| 0.00 | 2.69 | 0.00 | 1.63 | 20.03 | 42.01 | 26.87 | 312.71 | 0.5800 | 716.0 | 619.4 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 14.49 | 39.32 | 24.18 | 307.35 | 0.5008 | -663.0 | -429.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
