SDO HMI 2011-05-08 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.19 | 168.04 | 22.09 | 132.01 | 18.02 | 60.90 | 46.86 | 296.65 | 0.7782 | -794.1 | -289.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

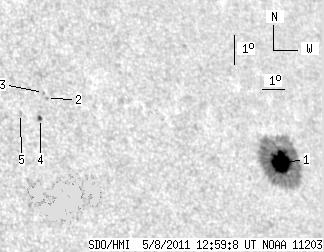

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.76 | 162.59 | 21.12 | 128.31 | 17.98 | 61.18 | 47.14 | 296.45 | 0.7809 | -1067.6 | -311.7 | |
| 0.00 | 1.25 | 0.00 | 0.86 | 19.66 | 51.49 | 37.45 | 303.60 | 0.6898 | 561.0 | 513.6 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 19.86 | 51.43 | 37.39 | 303.89 | 0.6903 | 614.0 | 553.4 | |
| 1.43 | 1.97 | 0.97 | 1.33 | 18.99 | 51.07 | 37.03 | 303.00 | 0.6813 | 714.4 | 604.7 | |
| 0.00 | 1.25 | 0.00 | 0.84 | 19.13 | 50.31 | 36.27 | 303.68 | 0.6739 | 756.0 | 709.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
