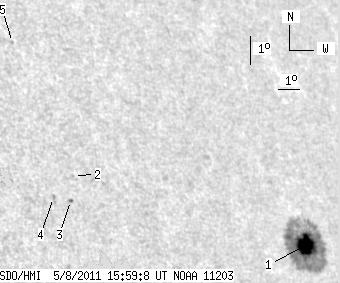

SDO HMI 2011-05-08 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.98 | 167.39 | 19.56 | 135.85 | 18.06 | 60.85 | 48.47 | 296.03 | 0.7939 | -767.7 | -285.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.98 | 161.93 | 19.56 | 132.06 | 17.99 | 61.14 | 48.76 | 295.80 | 0.7965 | -1066.3 | -315.0 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 19.85 | 51.41 | 39.02 | 302.86 | 0.7073 | 695.0 | 589.1 | |
| 0.00 | 1.43 | 0.00 | 0.99 | 19.02 | 51.05 | 38.66 | 302.02 | 0.6989 | 789.0 | 667.2 | |
| 0.00 | 2.06 | 0.00 | 1.41 | 19.09 | 50.37 | 37.98 | 302.52 | 0.6921 | 715.0 | 626.3 | |
| 0.00 | 1.25 | 0.00 | 0.89 | 24.25 | 50.28 | 37.89 | 308.96 | 0.7225 | 571.0 | 479.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
