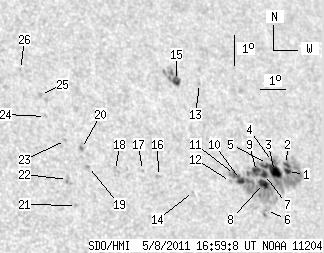

SDO HMI 2011-05-08 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.47 | 223.55 | 30.56 | 152.65 | 16.87 | 50.66 | 38.83 | 299.18 | 0.6891 | -357.3 | -310.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.86 | 177.49 | 2.00 | 122.40 | 16.73 | 52.45 | 40.61 | 297.94 | 0.7080 | -688.9 | -405.6 | |
| 2.33 | -1.00 | 1.63 | -1.00 | 16.96 | 52.46 | 40.63 | 298.23 | 0.7093 | -557.8 | 999999 | |
| 10.29 | -1.00 | 7.14 | -1.00 | 16.71 | 51.90 | 40.07 | 298.21 | 0.7019 | -853.5 | 999999 | |
| 1.70 | -1.00 | 1.18 | -1.00 | 17.03 | 51.90 | 40.07 | 298.63 | 0.7035 | -482.2 | 999999 | |
| 0.89 | -1.00 | 0.62 | -1.00 | 16.96 | 51.68 | 39.84 | 298.66 | 0.7007 | -571.9 | 999999 | |
| 0.00 | 5.19 | 0.00 | 3.53 | 15.44 | 51.27 | 39.43 | 296.86 | 0.6886 | -535.0 | -327.4 | |
| 3.40 | -1.00 | 2.34 | -1.00 | 16.60 | 51.46 | 39.63 | 298.30 | 0.6965 | -873.7 | 999999 | |
| 5.28 | -1.00 | 3.62 | -1.00 | 16.30 | 51.35 | 39.51 | 297.97 | 0.6938 | -975.9 | 999999 | |
| 5.46 | -1.00 | 3.74 | -1.00 | 16.68 | 51.15 | 39.32 | 298.58 | 0.6935 | -798.8 | 999999 | |
| 4.92 | -1.00 | 3.33 | -1.00 | 16.40 | 50.43 | 38.60 | 298.61 | 0.6840 | -929.2 | 999999 | |
| 2.15 | -1.00 | 1.45 | -1.00 | 16.55 | 50.23 | 38.39 | 298.93 | 0.6825 | -787.5 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.44 | 16.32 | 50.01 | 38.18 | 298.74 | 0.6789 | -555.0 | -477.2 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 19.47 | 49.56 | 37.72 | 303.18 | 0.6915 | 639.0 | 504.1 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 15.94 | 48.46 | 36.62 | 299.16 | 0.6591 | 555.0 | 474.0 | |
| 5.19 | 17.53 | 3.51 | 11.84 | 19.53 | 48.64 | 36.81 | 303.85 | 0.6822 | -623.7 | -594.6 | |
| 0.00 | 2.33 | 0.00 | 1.51 | 16.37 | 47.18 | 35.35 | 300.58 | 0.6470 | 642.0 | 463.5 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 16.54 | 46.60 | 34.77 | 301.21 | 0.6414 | 693.0 | 532.8 | |
| 0.00 | 2.95 | 0.00 | 1.88 | 16.51 | 45.56 | 33.72 | 301.88 | 0.6292 | 495.0 | 448.7 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 16.60 | 44.56 | 32.72 | 302.75 | 0.6182 | 771.0 | 627.4 | |
| 0.00 | 1.97 | 0.00 | 1.24 | 17.17 | 44.41 | 32.57 | 303.68 | 0.6203 | 947.0 | 759.0 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 15.33 | 43.88 | 32.04 | 301.42 | 0.6018 | 773.0 | 616.5 | |
| 0.00 | 2.77 | 0.00 | 1.72 | 16.15 | 43.69 | 31.85 | 302.77 | 0.6051 | 912.0 | 645.0 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 17.41 | 43.85 | 32.02 | 304.44 | 0.6157 | 755.0 | 602.1 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 18.17 | 43.26 | 31.42 | 305.98 | 0.6143 | 631.0 | 535.9 | |
| 0.00 | 2.77 | 0.00 | 1.75 | 18.89 | 43.22 | 31.38 | 307.00 | 0.6191 | 713.0 | 573.3 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 19.69 | 42.64 | 30.80 | 308.57 | 0.6189 | 579.0 | 484.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
