SDO HMI 2011-05-08 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.07 | 163.27 | 20.59 | 139.21 | 18.02 | 61.00 | 50.83 | 295.07 | 0.8158 | -736.2 | -277.1 | |
|
previous
or next observation for the same group /

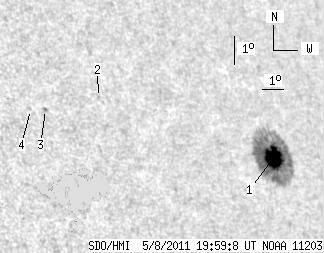

back to the solar disc SDO HMI 2011-05-08 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.07 | 159.79 | 20.59 | 136.69 | 18.00 | 61.17 | 51.00 | 294.97 | 0.8174 | -921.3 | -293.5 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 19.60 | 53.49 | 43.32 | 300.17 | 0.7498 | 522.0 | 390.3 | |
| 0.00 | 1.52 | 0.00 | 1.09 | 19.11 | 51.04 | 40.86 | 300.85 | 0.7224 | 611.0 | 567.5 | |
| 0.00 | 0.89 | 0.00 | 0.63 | 19.08 | 50.39 | 40.22 | 301.18 | 0.7156 | 469.0 | 432.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
