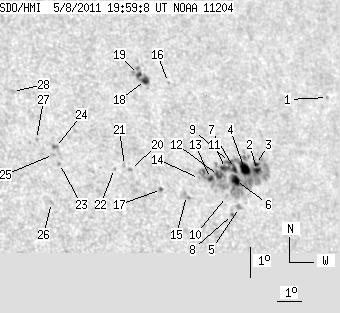

SDO HMI 2011-05-08 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.62 | 192.77 | 28.60 | 135.23 | 16.84 | 50.85 | 40.67 | 298.10 | 0.7091 | -352.9 | -328.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.91 | 19.24 | 56.45 | 46.28 | 298.33 | 0.7774 | 498.0 | 384.0 | |
| 2.68 | 150.75 | 1.93 | 106.71 | 16.71 | 52.52 | 42.35 | 297.03 | 0.7266 | -671.9 | -421.1 | |
| 1.61 | -2.00 | 1.16 | -2.00 | 16.90 | 52.49 | 42.31 | 297.29 | 0.7271 | -528.7 | 999999 | |
| 8.50 | -2.00 | 6.06 | -2.00 | 16.75 | 51.98 | 41.80 | 297.35 | 0.7209 | -742.3 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.88 | 15.48 | 51.44 | 41.26 | 295.97 | 0.7093 | -609.0 | -545.9 | |
| 6.08 | -2.00 | 4.29 | -2.00 | 16.35 | 51.49 | 41.31 | 297.08 | 0.7138 | -884.5 | 999999 | |
| 2.59 | -2.00 | 1.84 | -2.00 | 16.74 | 51.55 | 41.37 | 297.55 | 0.7162 | -810.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 15.25 | 51.09 | 40.91 | 295.83 | 0.7043 | 314.0 | 217.6 | |
| 1.97 | -2.00 | 1.39 | -2.00 | 16.92 | 51.39 | 41.21 | 297.87 | 0.7154 | -592.4 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 15.82 | 50.97 | 40.80 | 296.64 | 0.7057 | -621.0 | -626.6 | |
| 4.20 | -2.00 | 2.96 | -2.00 | 16.72 | 51.16 | 40.99 | 297.73 | 0.7120 | -785.4 | 999999 | |
| 3.67 | -2.00 | 2.56 | -2.00 | 16.48 | 50.81 | 40.64 | 297.60 | 0.7070 | -872.3 | 999999 | |
| 2.24 | -2.00 | 1.55 | -2.00 | 16.37 | 50.45 | 40.27 | 297.65 | 0.7025 | -882.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 16.35 | 49.99 | 39.82 | 297.87 | 0.6973 | -665.0 | -554.0 | |
| 0.00 | 4.38 | 0.00 | 2.98 | 15.78 | 49.32 | 39.15 | 297.47 | 0.6870 | -411.0 | -434.6 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 19.44 | 49.54 | 39.36 | 302.13 | 0.7086 | 573.0 | 548.0 | |
| 0.81 | 1.70 | 0.54 | 1.14 | 15.94 | 48.35 | 38.17 | 298.23 | 0.6768 | 522.9 | 508.7 | |
| 3.94 | 14.67 | 2.72 | 10.12 | 19.47 | 48.59 | 38.42 | 302.74 | 0.6988 | -606.0 | -482.3 | |
| 2.33 | -18.00 | 1.60 | -18.00 | 19.66 | 48.36 | 38.19 | 303.12 | 0.6974 | -718.5 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.07 | 16.54 | 47.24 | 37.07 | 299.70 | 0.6676 | 692.0 | 557.4 | |
| 0.00 | 1.43 | 0.00 | 0.95 | 16.66 | 47.03 | 36.86 | 299.99 | 0.6659 | 731.0 | 523.9 | |
| 0.00 | 1.25 | 0.00 | 0.82 | 16.54 | 46.61 | 36.44 | 300.10 | 0.6605 | 597.0 | 473.6 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 16.63 | 44.50 | 34.32 | 301.62 | 0.6368 | 775.0 | 683.3 | |
| 0.00 | 2.51 | 0.00 | 1.61 | 17.14 | 44.45 | 34.28 | 302.37 | 0.6395 | 797.0 | 615.9 | |
| 0.00 | 1.43 | 0.00 | 0.92 | 16.91 | 44.33 | 34.15 | 302.14 | 0.6366 | 746.0 | 540.0 | |
| 0.00 | 1.34 | 0.00 | 0.85 | 15.36 | 43.95 | 33.77 | 300.21 | 0.6225 | 693.0 | 521.5 | |
| 0.00 | 1.07 | 0.00 | 0.69 | 17.38 | 43.77 | 33.60 | 303.18 | 0.6333 | 574.0 | 581.2 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 18.91 | 43.19 | 33.02 | 305.73 | 0.6372 | 535.0 | 563.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
