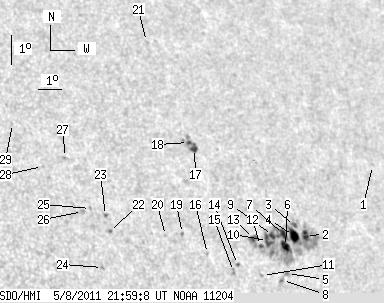

SDO HMI 2011-05-08 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.17 | 178.61 | 32.43 | 127.28 | 16.92 | 50.73 | 41.66 | 297.69 | 0.7202 | -319.5 | -306.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-08 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.50 | 19.23 | 56.38 | 47.32 | 297.86 | 0.7873 | 405.0 | 373.0 | |
| 5.10 | 139.60 | 3.74 | 100.58 | 16.80 | 52.53 | 43.46 | 296.60 | 0.7388 | -621.9 | -423.9 | |
| 1.61 | -2.00 | 1.17 | -2.00 | 17.10 | 52.13 | 43.07 | 297.17 | 0.7359 | -387.8 | 999999 | |
| 8.77 | -2.00 | 6.37 | -2.00 | 16.78 | 52.00 | 42.93 | 296.82 | 0.7331 | -635.4 | 999999 | |
| 0.00 | 2.60 | 0.00 | 1.85 | 15.54 | 51.41 | 42.34 | 295.51 | 0.7213 | -749.0 | -587.6 | |
| 6.17 | -2.00 | 4.44 | -2.00 | 16.41 | 51.55 | 42.48 | 296.56 | 0.7267 | -820.3 | 999999 | |
| 4.92 | -2.00 | 3.55 | -2.00 | 16.79 | 51.57 | 42.50 | 297.05 | 0.7286 | -733.7 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.46 | 15.30 | 51.13 | 42.07 | 295.33 | 0.7173 | 285.0 | 217.1 | |
| 3.13 | -2.00 | 2.24 | -2.00 | 16.74 | 51.08 | 42.02 | 297.22 | 0.7231 | -725.2 | 999999 | |
| 6.26 | -2.00 | 4.45 | -2.00 | 16.57 | 50.82 | 41.76 | 297.13 | 0.7196 | -785.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.75 | 15.43 | 50.32 | 41.26 | 295.89 | 0.7089 | 345.0 | 307.9 | |
| 1.34 | -2.00 | 0.95 | -2.00 | 16.39 | 50.48 | 41.42 | 297.08 | 0.7151 | -849.6 | 999999 | |
| 1.79 | -2.00 | 1.26 | -2.00 | 16.61 | 50.24 | 41.18 | 297.48 | 0.7135 | -775.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 15.74 | 49.36 | 40.29 | 296.80 | 0.6996 | -749.0 | -696.1 | |
| 0.00 | 2.06 | 0.00 | 1.42 | 15.51 | 49.14 | 40.07 | 296.60 | 0.6961 | -545.0 | -528.6 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 16.05 | 48.20 | 39.13 | 297.83 | 0.6882 | 548.0 | 442.1 | |
| 4.65 | 13.06 | 3.26 | 9.15 | 19.46 | 48.56 | 39.50 | 302.06 | 0.7100 | -572.8 | -498.5 | |
| 1.43 | -17.00 | 1.00 | -17.00 | 19.65 | 48.37 | 39.30 | 302.42 | 0.7090 | -727.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.97 | 16.65 | 47.33 | 38.27 | 299.14 | 0.6816 | 655.0 | 559.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 16.56 | 46.63 | 37.56 | 299.43 | 0.6732 | 632.0 | 512.6 | |
| 0.00 | 1.25 | 0.00 | 0.89 | 22.97 | 47.66 | 38.60 | 306.96 | 0.7212 | 433.0 | 378.1 | |
| 0.00 | 1.79 | 0.00 | 1.16 | 16.61 | 44.43 | 35.37 | 300.88 | 0.6486 | 728.0 | 618.2 | |
| 0.00 | 1.52 | 0.00 | 0.99 | 17.12 | 44.39 | 35.32 | 301.62 | 0.6512 | 779.0 | 673.1 | |
| 0.00 | 1.25 | 0.00 | 0.80 | 15.44 | 43.93 | 34.86 | 299.58 | 0.6358 | 658.0 | 559.0 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 17.33 | 43.85 | 34.79 | 302.27 | 0.6464 | 554.0 | 471.3 | |
| 0.00 | 2.24 | 0.00 | 1.44 | 17.22 | 43.52 | 34.46 | 302.35 | 0.6420 | 692.0 | 585.4 | |
| 0.00 | 1.79 | 0.00 | 1.16 | 18.96 | 43.25 | 34.19 | 304.91 | 0.6503 | 744.0 | 597.2 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 18.64 | 42.29 | 33.23 | 305.18 | 0.6376 | 438.0 | 402.9 | |
| 0.00 | 0.81 | 0.00 | 0.52 | 20.02 | 41.46 | 32.40 | 307.68 | 0.6383 | 611.0 | 545.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
