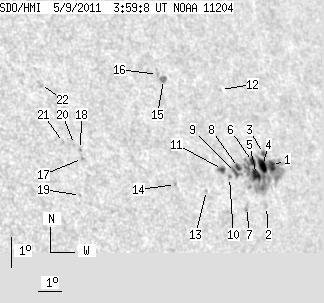

SDO HMI 2011-05-09 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.19 | 142.22 | 26.93 | 108.04 | 16.84 | 51.23 | 45.48 | 295.75 | 0.7596 | -379.8 | -319.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.73 | 114.09 | 4.46 | 87.63 | 16.82 | 52.57 | 46.81 | 295.13 | 0.7731 | -462.2 | -388.4 | |
| 0.00 | 2.06 | 0.00 | 1.57 | 15.48 | 51.93 | 46.17 | 293.73 | 0.7617 | -116.0 | -63.1 | |
| 1.61 | -1.00 | 1.25 | -1.00 | 17.20 | 52.32 | 46.56 | 295.69 | 0.7720 | -325.2 | 999999 | |
| 7.79 | -1.00 | 6.01 | -1.00 | 16.81 | 52.15 | 46.39 | 295.28 | 0.7688 | -595.6 | 999999 | |
| 6.81 | -1.00 | 5.20 | -1.00 | 16.50 | 51.77 | 46.02 | 295.06 | 0.7639 | -801.1 | 999999 | |
| 4.03 | -1.00 | 3.09 | -1.00 | 16.92 | 51.72 | 45.97 | 295.59 | 0.7649 | -669.9 | 999999 | |
| 0.00 | 3.04 | 0.00 | 2.28 | 15.41 | 51.00 | 45.25 | 294.02 | 0.7518 | -299.0 | -85.6 | |
| 2.87 | -1.00 | 2.16 | -1.00 | 16.69 | 51.02 | 45.26 | 295.62 | 0.7569 | -701.4 | 999999 | |
| 3.04 | -1.00 | 2.29 | -1.00 | 16.52 | 50.83 | 45.08 | 295.49 | 0.7543 | -742.0 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.40 | 16.35 | 50.51 | 44.76 | 295.41 | 0.7503 | -691.0 | -627.0 | |
| 3.31 | 4.39 | 2.47 | 3.26 | 16.60 | 50.27 | 44.52 | 295.83 | 0.7488 | -677.6 | -607.0 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 19.22 | 51.03 | 45.28 | 298.72 | 0.7673 | 372.0 | 335.9 | |
| 0.00 | 1.07 | 0.00 | 0.78 | 15.89 | 49.36 | 43.61 | 295.33 | 0.7363 | -558.0 | -452.6 | |
| 0.00 | 1.61 | 0.00 | 1.15 | 16.02 | 48.06 | 42.31 | 296.12 | 0.7229 | 437.0 | 315.3 | |
| 0.00 | 3.94 | 0.00 | 2.91 | 19.44 | 48.55 | 42.80 | 300.19 | 0.7436 | -660.0 | -556.9 | |
| 0.00 | 2.15 | 0.00 | 1.58 | 19.59 | 48.34 | 42.59 | 300.49 | 0.7421 | -690.0 | -573.7 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 16.71 | 44.37 | 38.61 | 298.97 | 0.6855 | 716.0 | 661.2 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 17.00 | 44.36 | 38.60 | 299.36 | 0.6869 | 666.0 | 649.4 | |
| 0.00 | 1.07 | 0.00 | 0.72 | 15.51 | 44.01 | 38.26 | 297.56 | 0.6753 | 544.0 | 395.8 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 17.15 | 44.15 | 38.40 | 299.69 | 0.6854 | 676.0 | 559.5 | |
| 0.00 | 0.81 | 0.00 | 0.54 | 17.20 | 43.72 | 37.96 | 300.01 | 0.6809 | 705.0 | 632.4 | |
| 0.00 | 2.69 | 0.00 | 1.82 | 19.06 | 43.26 | 37.51 | 302.74 | 0.6865 | 525.0 | 469.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
