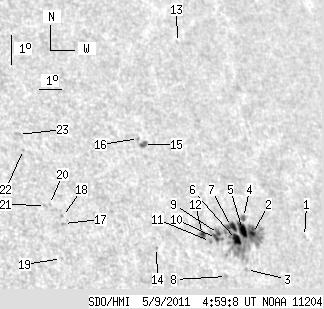

SDO HMI 2011-05-09 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.74 | 135.95 | 27.51 | 104.27 | 16.88 | 51.16 | 45.95 | 295.60 | 0.7645 | -322.2 | -307.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.81 | 16.75 | 55.10 | 49.90 | 293.85 | 0.8030 | 437.0 | 301.2 | |
| 2.24 | 107.65 | 1.76 | 83.45 | 16.73 | 52.59 | 47.39 | 294.78 | 0.7785 | -527.3 | -412.9 | |
| 0.00 | 1.52 | 0.00 | 1.17 | 15.55 | 51.95 | 46.74 | 293.58 | 0.7678 | -255.0 | -201.5 | |
| 2.24 | 3.13 | 1.76 | 2.46 | 17.23 | 52.34 | 47.13 | 295.49 | 0.7778 | -319.4 | -239.9 | |
| 8.42 | -2.00 | 6.56 | -2.00 | 16.84 | 52.16 | 46.96 | 295.08 | 0.7746 | -588.4 | 999999 | |
| 5.64 | -2.00 | 4.36 | -2.00 | 16.50 | 51.78 | 46.57 | 294.83 | 0.7695 | -831.9 | 999999 | |
| 6.27 | -2.00 | 4.85 | -2.00 | 16.91 | 51.68 | 46.47 | 295.37 | 0.7700 | -678.5 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.55 | 15.28 | 50.96 | 45.75 | 293.65 | 0.7566 | 396.0 | 212.1 | |
| 1.88 | -2.00 | 1.43 | -2.00 | 16.66 | 51.00 | 45.80 | 295.34 | 0.7622 | -725.4 | 999999 | |
| 2.60 | -2.00 | 1.97 | -2.00 | 16.49 | 50.86 | 45.65 | 295.20 | 0.7601 | -744.0 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.95 | 16.38 | 50.55 | 45.35 | 295.19 | 0.7565 | -816.0 | -722.9 | |
| 2.96 | 3.85 | 2.22 | 2.89 | 16.60 | 50.26 | 45.05 | 295.58 | 0.7543 | -715.4 | -673.7 | |
| 0.00 | 0.54 | 0.00 | 0.43 | 22.94 | 51.45 | 46.25 | 302.66 | 0.7923 | 516.0 | 432.5 | |
| 0.00 | 0.99 | 0.00 | 0.71 | 16.09 | 48.09 | 42.88 | 295.92 | 0.7293 | 504.0 | 384.2 | |
| 3.49 | 3.85 | 2.60 | 2.87 | 19.44 | 48.53 | 43.33 | 299.92 | 0.7488 | -548.4 | -365.8 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 19.63 | 48.37 | 43.17 | 300.23 | 0.7481 | -609.0 | -527.6 | |
| 0.00 | 1.34 | 0.00 | 0.92 | 16.71 | 44.35 | 39.14 | 298.66 | 0.6913 | 768.0 | 624.4 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 16.93 | 44.36 | 39.16 | 298.95 | 0.6926 | 654.0 | 575.7 | |
| 0.00 | 1.07 | 0.00 | 0.73 | 15.57 | 44.00 | 38.79 | 297.33 | 0.6817 | 425.0 | 358.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | 17.30 | 43.92 | 38.72 | 299.69 | 0.6897 | 574.0 | 579.6 | |
| 0.00 | 1.61 | 0.00 | 1.10 | 17.26 | 43.75 | 38.55 | 299.74 | 0.6876 | 714.0 | 615.8 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 19.06 | 43.32 | 38.12 | 302.35 | 0.6930 | 562.0 | 480.7 | |
| 0.00 | 2.42 | 0.00 | 1.66 | 19.55 | 43.26 | 38.05 | 303.02 | 0.6950 | 542.0 | 454.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
