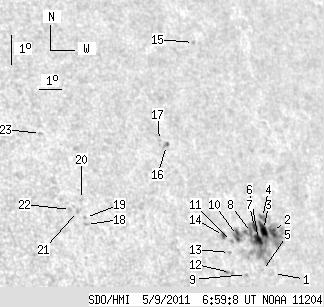

SDO HMI 2011-05-09 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.18 | 146.16 | 28.62 | 114.63 | 16.89 | 51.32 | 47.21 | 295.07 | 0.7771 | -376.4 | -297.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.85 | 15.46 | 52.22 | 48.12 | 292.94 | 0.7814 | -355.0 | -283.6 | |
| 4.84 | 121.62 | 3.89 | 96.37 | 16.82 | 52.62 | 48.51 | 294.44 | 0.7899 | -495.1 | -379.6 | |
| 7.52 | -2.00 | 6.00 | -2.00 | 16.87 | 52.21 | 48.10 | 294.65 | 0.7860 | -553.7 | 999999 | |
| 3.22 | -2.00 | 2.58 | -2.00 | 17.26 | 52.30 | 48.19 | 295.09 | 0.7882 | -306.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 15.54 | 51.73 | 47.62 | 293.21 | 0.7767 | -378.0 | -320.6 | |
| 6.18 | -2.00 | 4.88 | -2.00 | 16.53 | 51.86 | 47.75 | 294.38 | 0.7813 | -838.6 | 999999 | |
| 4.12 | -2.00 | 3.26 | -2.00 | 16.91 | 51.80 | 47.69 | 294.87 | 0.7821 | -708.2 | 999999 | |
| 2.87 | -2.00 | 2.26 | -2.00 | 16.75 | 51.60 | 47.49 | 294.74 | 0.7795 | -773.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 15.37 | 50.94 | 46.83 | 293.32 | 0.7680 | 243.0 | 206.4 | |
| 5.19 | -2.00 | 4.03 | -2.00 | 16.62 | 50.90 | 46.80 | 294.87 | 0.7721 | -701.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.17 | 16.41 | 50.56 | 46.45 | 294.75 | 0.7679 | -770.0 | -667.5 | |
| 0.00 | 2.60 | 0.00 | 1.97 | 15.41 | 50.21 | 46.11 | 293.64 | 0.7607 | 372.0 | 360.3 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 16.05 | 50.36 | 46.25 | 294.39 | 0.7645 | -576.0 | -538.3 | |
| 2.24 | 2.87 | 1.72 | 2.20 | 16.59 | 50.25 | 46.14 | 295.10 | 0.7654 | -719.1 | -650.9 | |
| 0.00 | 0.99 | 0.00 | 0.81 | 22.96 | 51.28 | 47.17 | 302.24 | 0.8006 | 551.0 | 442.9 | |
| 0.00 | 3.13 | 0.00 | 2.38 | 19.43 | 48.60 | 44.49 | 299.33 | 0.7603 | -613.0 | -507.4 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 19.58 | 48.34 | 44.23 | 299.64 | 0.7584 | -615.0 | -493.1 | |
| 0.00 | 1.52 | 0.00 | 1.06 | 16.70 | 44.32 | 40.21 | 298.04 | 0.7030 | 722.0 | 590.4 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 16.92 | 44.34 | 40.23 | 298.33 | 0.7043 | 744.0 | 516.7 | |
| 0.00 | 1.34 | 0.00 | 0.94 | 17.50 | 44.32 | 40.21 | 299.09 | 0.7070 | 503.0 | 432.4 | |
| 0.00 | 1.52 | 0.00 | 1.06 | 17.10 | 44.05 | 39.94 | 298.72 | 0.7020 | 639.0 | 516.5 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 17.16 | 43.78 | 39.67 | 298.95 | 0.6993 | 719.0 | 558.7 | |
| 0.00 | 1.79 | 0.00 | 1.25 | 19.60 | 43.21 | 39.10 | 302.44 | 0.7062 | 643.0 | 498.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
