SDO HMI 2011-05-09 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.70 | 125.91 | 25.55 | 101.14 | 16.76 | 51.51 | 48.50 | 294.39 | 0.7893 | -454.6 | -384.0 | |
|
previous
or next observation for the same group /

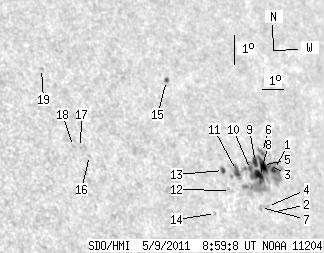

back to the solar disc SDO HMI 2011-05-09 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.69 | 108.81 | 2.21 | 88.10 | 16.76 | 52.76 | 49.75 | 293.89 | 0.8015 | -496.4 | -432.0 | |
| 0.00 | 0.63 | 0.00 | 0.51 | 15.35 | 52.14 | 49.13 | 292.43 | 0.7911 | -262.0 | -223.4 | |
| 0.27 | -1.00 | 0.22 | -1.00 | 16.88 | 52.56 | 49.54 | 294.11 | 0.7999 | -359.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.08 | 15.54 | 52.01 | 48.99 | 292.70 | 0.7903 | -373.0 | -365.8 | |
| 6.18 | -1.00 | 5.04 | -1.00 | 16.86 | 52.21 | 49.20 | 294.22 | 0.7966 | -582.6 | 999999 | |
| 1.43 | -1.00 | 1.18 | -1.00 | 17.29 | 52.36 | 49.35 | 294.67 | 0.7994 | -187.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 1.29 | 15.49 | 51.66 | 48.64 | 292.77 | 0.7867 | -68.0 | -143.3 | |
| 7.16 | -1.00 | 5.79 | -1.00 | 16.50 | 51.94 | 48.92 | 293.88 | 0.7927 | -795.0 | 999999 | |
| 3.67 | -1.00 | 2.98 | -1.00 | 16.94 | 51.90 | 48.89 | 294.43 | 0.7938 | -712.7 | 999999 | |
| 1.70 | -1.00 | 1.37 | -1.00 | 16.70 | 51.58 | 48.56 | 294.27 | 0.7899 | -751.8 | 999999 | |
| 4.57 | -1.00 | 3.62 | -1.00 | 16.64 | 50.89 | 47.87 | 294.46 | 0.7829 | -753.6 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.82 | 15.98 | 50.39 | 47.38 | 293.84 | 0.7756 | -359.0 | -403.4 | |
| 2.15 | 2.87 | 1.68 | 2.24 | 16.61 | 50.27 | 47.25 | 294.67 | 0.7766 | -653.2 | -652.0 | |
| 0.00 | 1.25 | 0.00 | 0.96 | 15.20 | 49.47 | 46.45 | 293.24 | 0.7635 | -601.0 | -457.9 | |
| 1.88 | 2.24 | 1.46 | 1.73 | 19.45 | 48.60 | 45.59 | 298.83 | 0.7711 | -458.0 | -434.5 | |
| 0.00 | 1.07 | 0.00 | 0.76 | 16.85 | 44.39 | 41.38 | 297.62 | 0.7163 | 719.0 | 555.1 | |
| 0.00 | 0.81 | 0.00 | 0.57 | 17.09 | 44.08 | 41.06 | 298.10 | 0.7141 | 606.0 | 562.9 | |
| 0.00 | 1.61 | 0.00 | 1.13 | 17.11 | 43.79 | 40.77 | 298.28 | 0.7110 | 598.0 | 479.4 | |
| 0.00 | 1.34 | 0.00 | 0.95 | 19.62 | 43.16 | 40.14 | 301.83 | 0.7171 | 522.0 | 435.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
