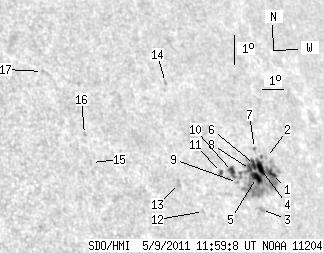

SDO HMI 2011-05-09 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.42 | 137.40 | 22.12 | 114.49 | 16.73 | 51.61 | 50.24 | 293.70 | 0.8059 | -473.0 | -351.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.85 | 119.08 | 3.29 | 99.96 | 16.71 | 52.79 | 51.42 | 293.24 | 0.8171 | -433.0 | -402.0 | |
| 0.00 | 1.07 | 0.00 | 0.92 | 17.22 | 52.73 | 51.36 | 293.86 | 0.8180 | 271.0 | 256.5 | |
| 0.00 | 3.13 | 0.00 | 2.60 | 15.52 | 51.86 | 50.49 | 292.14 | 0.8048 | -596.0 | -460.7 | |
| 6.09 | -1.00 | 5.15 | -1.00 | 16.85 | 52.29 | 50.92 | 293.58 | 0.8128 | -566.3 | 999999 | |
| 6.54 | -1.00 | 5.48 | -1.00 | 16.54 | 51.97 | 50.60 | 293.33 | 0.8089 | -834.6 | 999999 | |
| 3.04 | -1.00 | 2.56 | -1.00 | 16.96 | 52.03 | 50.66 | 293.80 | 0.8107 | -699.8 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.91 | 17.49 | 52.23 | 50.86 | 294.35 | 0.8142 | -359.0 | -294.4 | |
| 0.72 | -1.00 | 0.60 | -1.00 | 16.79 | 51.76 | 50.39 | 293.69 | 0.8077 | -816.6 | 999999 | |
| 0.00 | 1.25 | 0.00 | 1.03 | 16.34 | 50.96 | 49.59 | 293.44 | 0.7986 | -830.0 | -721.7 | |
| 4.57 | -1.00 | 3.74 | -1.00 | 16.68 | 50.84 | 49.47 | 293.90 | 0.7985 | -711.2 | 999999 | |
| 1.61 | 2.24 | 1.30 | 1.81 | 16.63 | 50.28 | 48.91 | 294.03 | 0.7930 | -663.1 | -533.0 | |
| 0.00 | 1.16 | 0.00 | 0.91 | 15.32 | 49.01 | 47.64 | 292.93 | 0.7760 | -581.0 | -434.1 | |
| 0.00 | 3.22 | 0.00 | 2.49 | 16.18 | 48.15 | 46.78 | 294.31 | 0.7703 | 450.0 | 378.3 | |
| 0.00 | 1.16 | 0.00 | 0.93 | 19.46 | 48.64 | 47.27 | 298.09 | 0.7873 | -453.0 | -386.4 | |
| 0.00 | 1.61 | 0.00 | 1.17 | 16.69 | 44.37 | 43.00 | 296.61 | 0.7329 | 577.0 | 558.7 | |
| 0.00 | 1.34 | 0.00 | 0.98 | 17.59 | 44.32 | 42.95 | 297.77 | 0.7364 | 527.0 | 419.1 | |
| 0.00 | 1.07 | 0.00 | 0.78 | 19.59 | 43.12 | 41.75 | 300.89 | 0.7333 | 520.0 | 485.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
