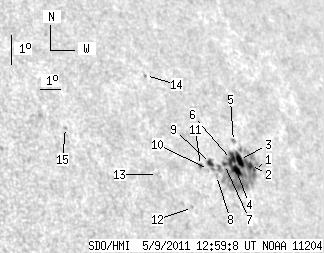

SDO HMI 2011-05-09 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.30 | 132.20 | 23.18 | 112.03 | 16.78 | 51.91 | 51.09 | 293.44 | 0.8141 | -562.6 | -357.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 114.14 | 0.23 | 97.26 | 16.62 | 52.97 | 52.15 | 292.89 | 0.8235 | -325.7 | -364.1 | |
| 3.22 | -1.00 | 2.79 | -1.00 | 16.74 | 52.81 | 51.99 | 293.08 | 0.8224 | -476.6 | 999999 | |
| 6.36 | -1.00 | 5.45 | -1.00 | 16.91 | 52.31 | 51.49 | 293.45 | 0.8183 | -566.4 | 999999 | |
| 5.82 | -1.00 | 4.94 | -1.00 | 16.54 | 52.02 | 51.20 | 293.11 | 0.8145 | -829.2 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.77 | 17.48 | 52.23 | 51.41 | 294.15 | 0.8192 | -396.0 | -302.4 | |
| 5.64 | -1.00 | 4.79 | -1.00 | 16.89 | 51.90 | 51.08 | 293.57 | 0.8144 | -773.3 | 999999 | |
| 1.52 | -1.00 | 1.28 | -1.00 | 16.71 | 51.48 | 50.66 | 293.50 | 0.8099 | -684.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 1.11 | 16.33 | 50.94 | 50.12 | 293.24 | 0.8037 | -671.0 | -615.0 | |
| 3.40 | 6.62 | 2.82 | 5.48 | 16.71 | 50.78 | 49.96 | 293.74 | 0.8033 | -664.6 | -588.5 | |
| 0.00 | 1.43 | 0.00 | 1.18 | 16.51 | 50.61 | 49.79 | 293.57 | 0.8011 | -687.0 | -514.0 | |
| 1.07 | 1.61 | 0.88 | 1.32 | 16.62 | 50.26 | 49.44 | 293.83 | 0.7980 | -657.6 | -605.0 | |
| 0.00 | 1.07 | 0.00 | 0.86 | 15.24 | 49.42 | 48.60 | 292.47 | 0.7854 | -468.0 | -384.6 | |
| 0.00 | 1.52 | 0.00 | 1.19 | 16.23 | 48.08 | 47.26 | 294.19 | 0.7753 | 550.0 | 412.3 | |
| 0.00 | 1.07 | 0.00 | 0.87 | 19.46 | 48.65 | 47.83 | 297.84 | 0.7926 | -412.0 | -355.3 | |
| 0.00 | 1.34 | 0.00 | 0.99 | 17.58 | 44.34 | 43.52 | 297.49 | 0.7422 | 490.0 | 363.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
