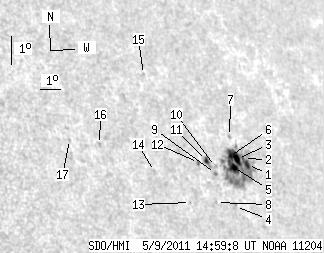

SDO HMI 2011-05-09 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.47 | 116.98 | 15.25 | 101.64 | 16.72 | 51.96 | 52.24 | 292.99 | 0.8245 | -408.9 | -352.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-09 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.49 | 96.13 | 3.10 | 84.28 | 16.69 | 52.84 | 53.12 | 292.66 | 0.8325 | -432.1 | -379.2 | |
| 0.81 | -1.00 | 0.71 | -1.00 | 16.88 | 52.70 | 52.99 | 292.92 | 0.8317 | -204.8 | 999999 | |
| 4.57 | -1.00 | 4.02 | -1.00 | 16.86 | 52.38 | 52.66 | 293.01 | 0.8288 | -525.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.84 | 15.30 | 51.69 | 51.97 | 291.40 | 0.8182 | 21.0 | 47.7 | |
| 4.57 | -1.00 | 3.98 | -1.00 | 16.56 | 52.05 | 52.33 | 292.76 | 0.8250 | -839.2 | 999999 | |
| 1.07 | -1.00 | 0.94 | -1.00 | 16.91 | 51.98 | 52.26 | 293.19 | 0.8253 | -773.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 1.34 | 17.56 | 52.25 | 52.53 | 293.86 | 0.8295 | -339.0 | -262.4 | |
| 0.00 | 0.90 | 0.00 | 0.75 | 15.38 | 50.75 | 51.04 | 291.80 | 0.8096 | 219.0 | 161.0 | |
| 0.00 | 1.43 | 0.00 | 1.22 | 16.32 | 51.04 | 51.32 | 292.81 | 0.8150 | -763.0 | -708.8 | |
| 0.00 | 1.61 | 0.00 | 1.37 | 16.55 | 51.12 | 51.40 | 293.05 | 0.8164 | -784.0 | -728.6 | |
| 2.60 | 5.28 | 2.20 | 4.47 | 16.72 | 50.73 | 51.01 | 293.39 | 0.8133 | -576.7 | -530.4 | |
| 0.36 | 1.70 | 0.30 | 1.43 | 16.64 | 50.30 | 50.58 | 293.44 | 0.8090 | -678.5 | -599.2 | |
| 0.00 | 1.07 | 0.00 | 0.88 | 15.32 | 49.45 | 49.73 | 292.16 | 0.7968 | -355.0 | -285.3 | |
| 0.00 | 0.90 | 0.00 | 0.71 | 16.25 | 48.02 | 48.30 | 293.80 | 0.7857 | 441.0 | 406.1 | |
| 0.00 | 1.43 | 0.00 | 1.18 | 19.41 | 48.65 | 48.93 | 297.33 | 0.8026 | -361.0 | -275.4 | |
| 0.00 | 1.61 | 0.00 | 1.23 | 17.01 | 45.70 | 45.98 | 295.66 | 0.7652 | 415.0 | 352.0 | |
| 0.00 | 1.25 | 0.00 | 0.94 | 17.11 | 44.37 | 44.66 | 296.37 | 0.7520 | 589.0 | 472.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
