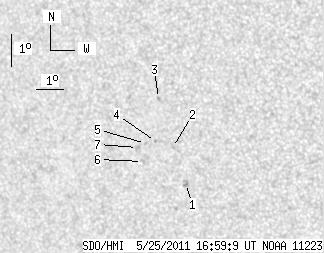

SDO HMI 2011-05-25 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.78 | 0.00 | 7.75 | -15.29 | 114.44 | -32.54 | 115.06 | 0.5751 | 476.7 | 381.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-25 16:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.78 | 0.00 | 2.28 | -16.27 | 115.23 | -31.75 | 117.14 | 0.5698 | 653.0 | 627.3 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -15.13 | 114.95 | -32.04 | 115.10 | 0.5676 | 631.0 | 469.3 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -13.60 | 114.68 | -32.31 | 112.38 | 0.5639 | 756.0 | 509.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -14.94 | 114.35 | -32.64 | 114.43 | 0.5745 | 598.0 | 470.8 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -15.00 | 113.96 | -33.02 | 114.31 | 0.5798 | 646.0 | 498.5 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -15.56 | 113.75 | -33.23 | 115.10 | 0.5852 | -556.0 | -522.1 | |
| 0.00 | 2.70 | 0.00 | 1.65 | -15.12 | 113.64 | -33.34 | 114.33 | 0.5845 | 609.0 | 396.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
