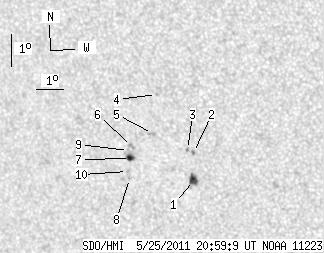

SDO HMI 2011-05-25 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.45 | 26.48 | 6.18 | 15.65 | -15.61 | 114.49 | -30.27 | 117.05 | 0.5472 | 235.7 | 273.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-25 20:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.58 | 9.01 | 3.86 | 5.28 | -16.26 | 115.59 | -29.17 | 118.91 | 0.5367 | 882.2 | 684.8 | |
| 0.00 | 1.62 | 0.00 | 0.95 | -15.38 | 115.73 | -29.03 | 117.50 | 0.5296 | 895.0 | 771.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -15.29 | 115.53 | -29.24 | 117.19 | 0.5317 | 619.0 | 483.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.56 | 114.66 | -30.10 | 113.58 | 0.5341 | 803.0 | 653.1 | |
| 0.00 | 2.79 | 0.00 | 1.65 | -14.77 | 114.34 | -30.43 | 115.50 | 0.5446 | 756.0 | 572.0 | |
| 0.00 | 3.24 | 0.00 | 1.93 | -15.17 | 113.50 | -31.26 | 115.64 | 0.5577 | 554.0 | 270.7 | |
| 3.87 | 4.78 | 2.32 | 2.85 | -15.54 | 113.40 | -31.36 | 116.21 | 0.5610 | -850.5 | -749.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -16.17 | 113.26 | -31.51 | 117.15 | 0.5662 | -632.0 | -532.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -15.29 | 113.37 | -31.39 | 115.77 | 0.5601 | -331.0 | -185.3 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -15.95 | 113.22 | -31.54 | 116.77 | 0.5655 | -754.0 | -496.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
