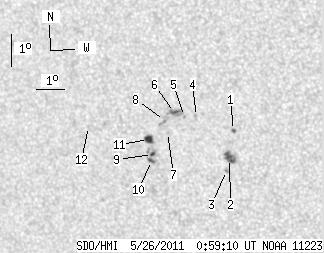

SDO HMI 2011-05-26 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.63 | 49.21 | 11.99 | 28.60 | -15.63 | 114.04 | -28.51 | 118.38 | 0.5245 | 42.2 | -76.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 1.44 | 0.82 | 0.82 | -15.33 | 116.08 | -26.47 | 119.43 | 0.4955 | 844.4 | 0.0 | |
| 6.85 | 9.92 | 3.93 | 5.68 | -16.20 | 115.82 | -26.73 | 120.79 | 0.5048 | 898.7 | 882.9 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -16.58 | 115.65 | -26.89 | 121.31 | 0.5095 | 775.0 | 616.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -14.87 | 114.84 | -27.71 | 117.61 | 0.5092 | 586.0 | 297.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.87 | 114.41 | -28.14 | 117.29 | 0.5149 | 560.0 | 408.0 | |
| 2.79 | 8.65 | 1.62 | 5.01 | -14.74 | 114.07 | -28.48 | 116.81 | 0.5187 | 636.4 | 147.1 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -15.36 | 113.73 | -28.82 | 117.66 | 0.5269 | -654.0 | -526.1 | |
| 0.00 | 4.96 | 0.00 | 2.88 | -14.99 | 113.68 | -28.87 | 116.96 | 0.5254 | -707.0 | -401.2 | |
| 1.71 | 7.57 | 1.01 | 4.45 | -16.05 | 113.08 | -29.47 | 118.37 | 0.5394 | -801.8 | -523.7 | |
| 2.34 | 4.51 | 1.38 | 2.65 | -16.23 | 113.01 | -29.54 | 118.64 | 0.5414 | -702.7 | -340.1 | |
| 5.50 | 6.76 | 3.23 | 3.97 | -15.57 | 113.01 | -29.54 | 117.51 | 0.5376 | -883.9 | -609.9 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -15.14 | 110.88 | -31.67 | 115.38 | 0.5631 | -422.0 | -393.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
