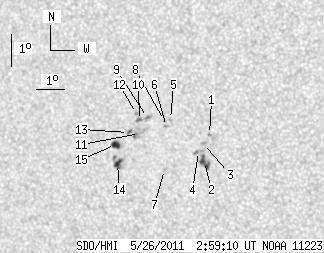

SDO HMI 2011-05-26 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.67 | 51.56 | 10.18 | 29.62 | -15.56 | 114.25 | -27.20 | 119.32 | 0.5069 | 234.8 | 141.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.76 | -15.26 | 116.24 | -25.20 | 120.45 | 0.4785 | 807.0 | 734.5 | |
| 6.40 | 8.66 | 3.63 | 4.91 | -16.11 | 115.96 | -25.49 | 121.74 | 0.4882 | 936.1 | 787.1 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -15.54 | 116.00 | -25.45 | 120.75 | 0.4836 | 924.0 | 680.3 | |
| 0.00 | 3.88 | 0.00 | 2.20 | -15.79 | 115.79 | -25.66 | 121.02 | 0.4881 | 672.0 | 674.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -14.78 | 114.94 | -26.50 | 118.42 | 0.4926 | 838.0 | 786.7 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -15.00 | 114.77 | -26.67 | 118.69 | 0.4963 | 679.0 | 471.6 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -16.34 | 114.51 | -26.94 | 120.89 | 0.5086 | 579.0 | 399.5 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -14.81 | 114.73 | -26.72 | 118.30 | 0.4957 | 612.0 | 507.9 | |
| 0.00 | 2.80 | 0.00 | 1.60 | -14.71 | 114.14 | -27.31 | 117.65 | 0.5029 | 743.0 | 512.5 | |
| 0.63 | 2.43 | 0.36 | 1.40 | -14.80 | 113.85 | -27.60 | 117.59 | 0.5074 | 665.1 | 512.2 | |
| 0.00 | 5.77 | 0.00 | 3.32 | -15.21 | 113.79 | -27.66 | 118.28 | 0.5107 | -522.0 | -477.6 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -14.58 | 113.77 | -27.68 | 117.13 | 0.5071 | 735.0 | 614.2 | |
| 0.90 | 1.98 | 0.52 | 1.15 | -15.17 | 113.40 | -28.05 | 117.92 | 0.5156 | -753.1 | -791.8 | |
| 4.60 | 9.56 | 2.68 | 5.57 | -16.14 | 112.86 | -28.59 | 119.20 | 0.5286 | -851.2 | -615.2 | |
| 5.14 | 6.67 | 2.99 | 3.88 | -15.54 | 112.88 | -28.57 | 118.18 | 0.5247 | -911.0 | -630.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
