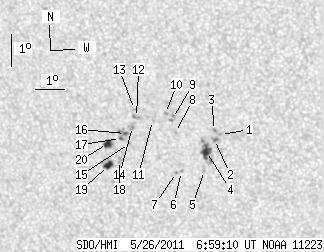

SDO HMI 2011-05-26 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.73 | 69.80 | 12.29 | 39.30 | -15.64 | 114.46 | -24.80 | 121.64 | 0.4761 | 108.0 | 134.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.65 | -15.35 | 116.65 | -22.60 | 123.25 | 0.4450 | 937.0 | 717.4 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -15.51 | 116.43 | -22.82 | 123.32 | 0.4491 | 1012.0 | 891.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -15.22 | 116.46 | -22.79 | 122.80 | 0.4465 | 972.0 | 777.2 | |
| 8.57 | 18.85 | 4.77 | 10.48 | -15.88 | 116.11 | -23.14 | 123.69 | 0.4562 | 923.4 | 687.3 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -16.48 | 115.97 | -23.29 | 124.66 | 0.4628 | 550.0 | 436.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -16.50 | 115.17 | -24.09 | 123.87 | 0.4732 | 798.0 | 639.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -16.53 | 114.99 | -24.26 | 123.75 | 0.4757 | 687.0 | 569.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -15.28 | 115.11 | -24.14 | 121.53 | 0.4647 | -542.0 | -431.7 | |
| 0.00 | 3.07 | 0.00 | 1.71 | -14.84 | 115.06 | -24.19 | 120.63 | 0.4622 | 477.0 | 618.8 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -14.68 | 114.84 | -24.41 | 120.12 | 0.4641 | 778.0 | 636.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -14.89 | 114.37 | -24.89 | 120.09 | 0.4719 | 457.0 | 368.2 | |
| 0.00 | 2.89 | 0.00 | 1.63 | -14.79 | 113.82 | -25.43 | 119.41 | 0.4785 | 621.0 | 472.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -14.54 | 113.78 | -25.47 | 118.90 | 0.4774 | 703.0 | 521.1 | |
| 0.00 | 3.88 | 0.00 | 2.19 | -15.07 | 113.65 | -25.60 | 119.78 | 0.4827 | -657.0 | -546.2 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -15.60 | 113.47 | -25.78 | 120.61 | 0.4887 | -804.0 | -694.4 | |
| 1.17 | 7.13 | 0.66 | 4.04 | -15.29 | 113.37 | -25.88 | 119.94 | 0.4878 | -817.2 | -815.5 | |
| 1.08 | -16.00 | 0.61 | -16.00 | -15.44 | 113.18 | -26.07 | 120.06 | 0.4915 | -865.4 | 999999 | |
| 0.00 | 3.16 | 0.00 | 1.80 | -16.13 | 113.05 | -26.21 | 121.19 | 0.4979 | -883.0 | -702.4 | |
| 5.14 | 8.84 | 2.95 | 5.07 | -16.29 | 112.64 | -26.62 | 121.11 | 0.5043 | -866.0 | -575.7 | |
| 5.77 | 6.94 | 3.30 | 3.96 | -15.60 | 112.70 | -26.55 | 119.92 | 0.4988 | -891.5 | -679.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
