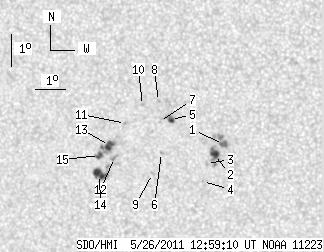

SDO HMI 2011-05-26 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.57 | 70.23 | 17.38 | 38.58 | -15.64 | 114.47 | -21.50 | 125.21 | 0.4332 | 40.9 | 114.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 12:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.33 | 10.46 | 2.34 | 5.65 | -15.42 | 116.87 | -19.10 | 127.74 | 0.4005 | 980.7 | 800.3 | |
| 5.23 | 12.17 | 2.83 | 6.60 | -15.73 | 116.54 | -19.43 | 127.92 | 0.4075 | 1034.6 | 749.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -16.01 | 116.24 | -19.72 | 128.08 | 0.4138 | 567.0 | 462.6 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.58 | 116.04 | -19.92 | 128.92 | 0.4215 | 687.0 | 515.8 | |
| 3.52 | 6.31 | 1.91 | 3.44 | -14.62 | 115.17 | -20.79 | 123.90 | 0.4156 | 876.1 | 704.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -15.65 | 114.76 | -21.20 | 125.49 | 0.4295 | 642.0 | 575.6 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -14.68 | 114.79 | -21.17 | 123.58 | 0.4210 | -352.0 | -199.7 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.06 | 114.82 | -21.14 | 122.32 | 0.4157 | 855.0 | 645.4 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -16.31 | 114.38 | -21.58 | 126.31 | 0.4399 | 711.0 | 471.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -14.18 | 114.27 | -21.69 | 121.94 | 0.4240 | 753.0 | 588.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -14.74 | 113.64 | -22.32 | 122.38 | 0.4368 | 641.0 | 580.8 | |
| 0.00 | 3.61 | 0.00 | 2.00 | -15.80 | 113.14 | -22.82 | 123.92 | 0.4516 | -1001.0 | -723.0 | |
| 5.32 | 15.24 | 2.95 | 8.46 | -15.42 | 113.02 | -22.95 | 123.06 | 0.4503 | -1047.9 | -826.1 | |
| 9.83 | 14.52 | 5.49 | 8.10 | -16.33 | 112.56 | -23.40 | 124.30 | 0.4633 | -859.7 | -719.0 | |
| 3.34 | -13.00 | 1.86 | -13.00 | -15.73 | 112.64 | -23.33 | 123.26 | 0.4576 | -810.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
