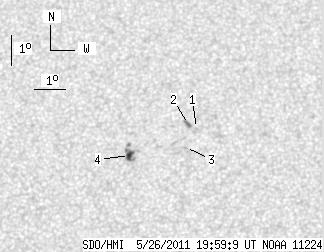

SDO HMI 2011-05-26 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.32 | 19.29 | 2.83 | 10.29 | 20.17 | 129.41 | -2.68 | 6.85 | 0.3714 | -83.0 | 200.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 19:59:09 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.48 | 20.79 | 130.99 | -1.10 | 2.73 | 0.3790 | -780.0 | -617.6 | |
| 0.81 | 3.79 | 0.43 | 2.03 | 20.93 | 130.72 | -1.36 | 3.35 | 0.3814 | -975.8 | -771.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 20.17 | 130.63 | -1.45 | 3.71 | 0.3692 | -711.0 | -496.7 | |
| 4.51 | 13.43 | 2.40 | 7.16 | 19.91 | 128.83 | -3.26 | 8.39 | 0.3682 | 1001.0 | 701.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
