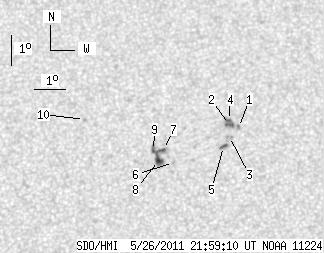

SDO HMI 2011-05-26 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.43 | 34.88 | 7.17 | 18.61 | 20.26 | 129.62 | -1.35 | 3.48 | 0.3709 | -68.6 | 217.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-26 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.98 | 0.00 | 1.06 | 20.80 | 131.31 | 0.33 | 359.18 | 0.3786 | -945.0 | -735.2 | |
| 3.52 | 7.66 | 1.88 | 4.10 | 20.90 | 131.02 | 0.04 | 359.91 | 0.3802 | -994.7 | -693.7 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 20.51 | 131.02 | 0.04 | 359.91 | 0.3738 | -661.0 | -522.7 | |
| 2.07 | -2.00 | 1.11 | -2.00 | 21.03 | 130.98 | 0.00 | 0.00 | 0.3823 | -745.7 | 999999 | |
| 2.16 | 3.07 | 1.15 | 1.63 | 20.18 | 130.82 | -0.16 | 0.40 | 0.3685 | -698.0 | -728.8 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 19.66 | 129.21 | -1.77 | 4.64 | 0.3612 | 763.0 | 522.9 | |
| 1.08 | 16.86 | 0.58 | 8.97 | 20.09 | 128.88 | -2.10 | 5.37 | 0.3685 | 531.4 | 669.1 | |
| 3.52 | -7.00 | 1.87 | -7.00 | 19.73 | 128.72 | -2.25 | 5.88 | 0.3629 | 1057.4 | 999999 | |
| 1.08 | -7.00 | 0.58 | -7.00 | 20.05 | 128.56 | -2.42 | 6.21 | 0.3685 | 919.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 21.07 | 126.29 | -4.69 | 11.31 | 0.3904 | 759.0 | 626.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
