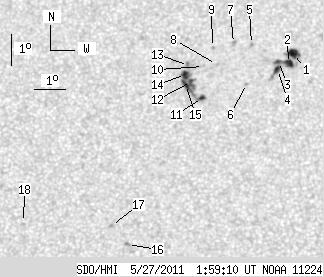

SDO HMI 2011-05-27 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.12 | 76.74 | 16.63 | 40.90 | 20.20 | 129.82 | 1.05 | 357.55 | 0.3697 | -209.7 | 57.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-27 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.39 | 32.74 | 4.50 | 17.52 | 20.98 | 131.83 | 3.06 | 352.51 | 0.3842 | -897.5 | -711.2 | |
| 5.32 | -1.00 | 2.85 | -1.00 | 20.65 | 131.66 | 2.89 | 352.80 | 0.3785 | -1090.3 | 999999 | |
| 2.44 | -1.00 | 1.30 | -1.00 | 20.71 | 131.34 | 2.57 | 353.62 | 0.3790 | -872.3 | 999999 | |
| 3.61 | -1.00 | 1.93 | -1.00 | 20.45 | 131.30 | 2.53 | 353.63 | 0.3747 | -932.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 21.27 | 130.46 | 1.70 | 355.89 | 0.3867 | -743.0 | -543.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 19.99 | 130.29 | 1.52 | 356.07 | 0.3658 | 618.0 | 374.9 | |
| 0.00 | 2.53 | 0.00 | 1.36 | 21.30 | 129.88 | 1.11 | 357.31 | 0.3866 | -348.0 | -412.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.61 | 129.32 | 0.55 | 358.61 | 0.3751 | 436.0 | 274.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 21.17 | 129.19 | 0.43 | 358.96 | 0.3841 | -598.0 | -403.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 20.55 | 128.90 | 0.13 | 359.67 | 0.3740 | 190.0 | 237.9 | |
| 2.07 | 26.97 | 1.10 | 14.34 | 19.54 | 128.87 | 0.10 | 359.74 | 0.3575 | 997.8 | 904.3 | |
| 1.53 | -11.00 | 0.82 | -11.00 | 20.06 | 128.51 | -0.26 | 0.66 | 0.3660 | 951.2 | 999999 | |
| 0.00 | 3.70 | 0.00 | 1.97 | 20.58 | 128.41 | -0.35 | 0.89 | 0.3745 | 560.0 | 441.3 | |
| 4.24 | -11.00 | 2.26 | -11.00 | 20.29 | 128.32 | -0.45 | 1.15 | 0.3698 | 834.4 | 999999 | |
| 3.52 | -11.00 | 1.87 | -11.00 | 19.96 | 128.32 | -0.45 | 1.16 | 0.3644 | 980.5 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 14.83 | 126.51 | -2.26 | 7.81 | 0.2818 | -893.0 | -736.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 15.43 | 126.00 | -2.77 | 9.19 | 0.2931 | -822.0 | -606.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 15.53 | 123.21 | -5.55 | 17.84 | 0.3056 | 500.0 | 557.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
