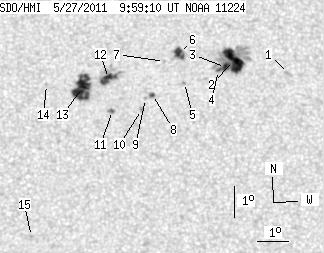

SDO HMI 2011-05-27 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.48 | 151.19 | 41.61 | 81.33 | 20.69 | 130.61 | 6.23 | 345.01 | 0.3901 | 51.5 | -117.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-27 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.34 | 0.00 | 1.81 | 20.70 | 134.56 | 10.18 | 336.13 | 0.4102 | 719.0 | 494.6 | |
| 22.01 | 66.04 | 11.92 | 35.77 | 21.12 | 132.77 | 8.39 | 340.31 | 0.4058 | -1108.6 | -396.1 | |
| 3.70 | -2.00 | 2.00 | -2.00 | 20.89 | 132.49 | 8.12 | 340.70 | 0.4008 | -1204.1 | 999999 | |
| 1.17 | -2.00 | 0.63 | -2.00 | 20.79 | 132.26 | 7.88 | 341.13 | 0.3981 | -863.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.39 | 131.13 | 6.75 | 343.37 | 0.3865 | -899.0 | -713.8 | |
| 7.76 | 11.82 | 4.19 | 6.38 | 21.34 | 131.01 | 6.63 | 344.36 | 0.4006 | -926.3 | -495.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 21.08 | 130.50 | 6.13 | 345.31 | 0.3944 | -750.0 | -518.5 | |
| 1.35 | 2.35 | 0.72 | 1.25 | 20.00 | 130.07 | 5.69 | 345.58 | 0.3758 | 627.8 | 442.4 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 19.86 | 129.84 | 5.46 | 346.05 | 0.3728 | 284.0 | 274.8 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 19.51 | 129.70 | 5.32 | 346.15 | 0.3666 | 902.0 | 716.7 | |
| 1.17 | 2.80 | 0.62 | 1.49 | 19.47 | 128.76 | 4.38 | 348.50 | 0.3627 | 995.8 | 958.7 | |
| 10.01 | 22.28 | 5.36 | 11.93 | 20.52 | 128.66 | 4.28 | 349.33 | 0.3790 | 930.0 | 155.1 | |
| 30.31 | 34.73 | 16.17 | 18.52 | 20.22 | 127.81 | 3.43 | 351.29 | 0.3719 | 1010.5 | 711.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.32 | 126.64 | 2.26 | 354.25 | 0.3711 | 707.0 | 560.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 15.43 | 126.11 | 1.73 | 354.22 | 0.2898 | -804.0 | -688.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
