SDO HMI 2011-05-27 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.94 | 148.18 | 40.91 | 79.81 | 20.56 | 130.51 | 7.23 | 342.66 | 0.3925 | -3.2 | -50.4 | |
|
previous
or next observation for the same group /

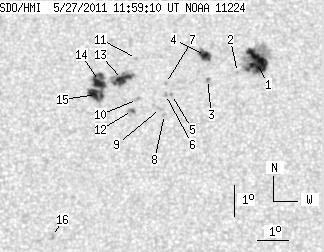

back to the solar disc SDO HMI 2011-05-27 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.86 | 63.23 | 15.68 | 34.37 | 21.05 | 132.89 | 9.61 | 337.67 | 0.4117 | -1113.5 | -436.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 20.72 | 132.24 | 8.96 | 338.71 | 0.4030 | -891.0 | -642.0 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 20.49 | 131.25 | 7.97 | 340.68 | 0.3940 | -971.0 | -852.8 | |
| 9.38 | 10.64 | 5.08 | 5.76 | 21.28 | 131.22 | 7.94 | 341.42 | 0.4057 | -970.4 | -679.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 20.00 | 130.05 | 6.77 | 343.00 | 0.3804 | 816.0 | 661.1 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 20.00 | 129.85 | 6.57 | 343.46 | 0.3795 | 883.0 | 686.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 20.36 | 129.87 | 6.59 | 343.71 | 0.3851 | 691.0 | 497.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 19.35 | 129.79 | 6.51 | 343.07 | 0.3691 | 789.0 | 617.3 | |
| 0.00 | 2.53 | 0.00 | 1.35 | 19.54 | 129.67 | 6.39 | 343.53 | 0.3716 | 834.0 | 645.2 | |
| 0.00 | 2.71 | 0.00 | 1.44 | 19.83 | 128.94 | 5.66 | 345.54 | 0.3729 | 780.0 | 550.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 21.17 | 128.95 | 5.67 | 346.41 | 0.3940 | -541.0 | -429.7 | |
| 1.53 | 4.69 | 0.82 | 2.50 | 19.47 | 128.76 | 5.48 | 345.72 | 0.3666 | 883.9 | 753.3 | |
| 9.65 | 19.12 | 5.17 | 10.24 | 20.48 | 128.47 | 5.19 | 347.10 | 0.3814 | 1000.3 | 368.9 | |
| 12.72 | 32.74 | 6.80 | 17.48 | 20.42 | 127.72 | 4.44 | 348.88 | 0.3778 | 961.4 | 708.7 | |
| 13.80 | -14.00 | 7.36 | -14.00 | 19.99 | 127.61 | 4.33 | 348.92 | 0.3707 | 1109.8 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.45 | 15.43 | 126.11 | 2.83 | 350.57 | 0.2922 | -767.0 | -615.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
