SDO HMI 2011-05-27 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.70 | 97.91 | 18.52 | 50.76 | -15.98 | 113.66 | -8.52 | 151.17 | 0.2943 | -383.2 | -208.1 | |
|
previous
or next observation for the same group /

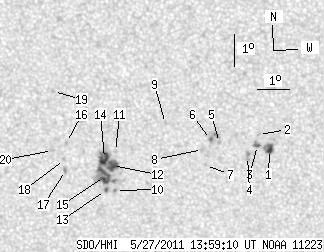

back to the solar disc SDO HMI 2011-05-27 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 8.21 | 2.50 | 4.21 | -15.62 | 117.79 | -4.39 | 163.46 | 0.2602 | 973.2 | 997.1 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -15.15 | 117.45 | -4.73 | 161.69 | 0.2543 | 849.0 | 630.4 | |
| 2.07 | 3.43 | 1.06 | 1.76 | -15.50 | 117.41 | -4.77 | 161.98 | 0.2601 | 828.6 | 764.1 | |
| 0.00 | 3.97 | 0.00 | 2.04 | -15.84 | 117.09 | -5.09 | 161.28 | 0.2673 | 940.0 | 791.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.40 | 116.21 | -5.97 | 157.72 | 0.2655 | 827.0 | 621.3 | |
| 1.35 | 5.68 | 0.70 | 2.92 | -15.30 | 115.93 | -6.25 | 156.63 | 0.2659 | 963.3 | 871.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.12 | 115.75 | -6.43 | 157.26 | 0.2797 | 881.0 | 598.2 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -15.62 | 115.67 | -6.51 | 156.26 | 0.2725 | 680.0 | 518.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.80 | 114.52 | -7.66 | 151.22 | 0.2688 | 687.0 | 531.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.90 | 112.84 | -9.34 | 150.09 | 0.3129 | -942.0 | -797.7 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.67 | 112.89 | -9.29 | 148.08 | 0.2951 | -935.0 | -666.7 | |
| 8.30 | 60.15 | 4.31 | 31.28 | -16.11 | 112.78 | -9.40 | 148.57 | 0.3023 | -1156.4 | -639.9 | |
| 1.35 | -12.00 | 0.71 | -12.00 | -16.90 | 112.51 | -9.67 | 149.25 | 0.3156 | -562.3 | 999999 | |
| 7.21 | -12.00 | 3.75 | -12.00 | -15.89 | 112.53 | -9.65 | 147.51 | 0.3014 | -1170.9 | 999999 | |
| 10.55 | -12.00 | 5.49 | -12.00 | -16.46 | 112.50 | -9.68 | 148.46 | 0.3095 | -961.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -15.38 | 111.34 | -10.84 | 143.45 | 0.3058 | -874.0 | -682.5 | |
| 0.00 | 2.25 | 0.00 | 1.18 | -16.26 | 111.26 | -10.92 | 144.98 | 0.3182 | -828.0 | -664.8 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -15.92 | 111.25 | -10.93 | 144.28 | 0.3138 | -796.0 | -649.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.79 | 111.01 | -11.17 | 139.14 | 0.2890 | -783.0 | -673.4 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -15.63 | 110.88 | -11.30 | 142.82 | 0.3137 | -718.0 | -566.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
