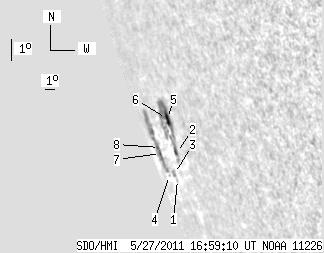

SDO HMI 2011-05-27 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.75 | 76.10 | 24.93 | 297.87 | -20.45 | 38.23 | -82.29 | 110.48 | 0.9911 | 21.9 | -121.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-27 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 4.47 | -21.62 | 38.16 | -82.36 | 111.65 | 0.9919 | 31.0 | 30.6 | |
| 1.89 | 42.20 | 5.74 | 126.68 | -20.78 | 40.15 | -80.37 | 110.87 | 0.9872 | 212.8 | -39.2 | |
| 0.00 | 2.43 | 0.00 | 9.41 | -21.43 | 38.00 | -82.52 | 111.45 | 0.9922 | -29.0 | -96.9 | |
| 0.00 | 0.99 | 0.00 | 4.79 | -21.46 | 36.42 | -84.10 | 111.45 | 0.9951 | -352.0 | -371.5 | |
| 2.89 | -2.00 | 8.11 | -2.00 | -19.69 | 40.77 | -79.75 | 109.78 | 0.9854 | 284.5 | 999999 | |
| 1.71 | -2.00 | 4.93 | -2.00 | -19.69 | 40.59 | -79.93 | 109.77 | 0.9859 | -93.6 | 999999 | |
| 0.81 | 29.31 | 4.04 | 152.52 | -20.74 | 36.25 | -84.27 | 110.72 | 0.9953 | -366.7 | -180.3 | |
| 0.45 | -7.00 | 2.11 | -7.00 | -20.55 | 36.63 | -83.89 | 110.54 | 0.9947 | -295.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
