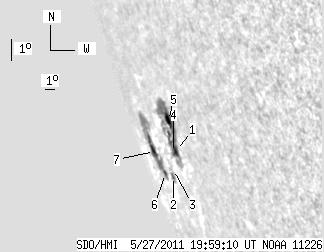

SDO HMI 2011-05-27 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.59 | 101.72 | 51.95 | 321.86 | -20.62 | 38.20 | -80.66 | 110.71 | 0.9873 | -123.3 | -74.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-27 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 57.80 | 10.21 | 148.53 | -20.69 | 40.33 | -78.53 | 110.85 | 0.9819 | 358.0 | 44.3 | |
| 0.81 | 4.06 | 2.58 | 13.00 | -21.49 | 38.03 | -80.83 | 111.57 | 0.9884 | 103.9 | -35.5 | |
| 0.00 | 0.81 | 0.00 | 2.45 | -21.27 | 38.56 | -80.30 | 111.36 | 0.9871 | -206.0 | -250.3 | |
| 1.08 | -1.00 | 2.92 | -1.00 | -20.74 | 39.71 | -79.15 | 110.87 | 0.9838 | -262.8 | 999999 | |
| 4.15 | -1.00 | 10.19 | -1.00 | -19.72 | 40.77 | -78.08 | 109.89 | 0.9804 | 353.5 | 999999 | |
| 2.25 | 39.05 | 8.40 | 157.88 | -21.36 | 36.54 | -82.32 | 111.39 | 0.9918 | -527.2 | -186.3 | |
| 4.33 | -6.00 | 17.65 | -6.00 | -20.63 | 35.88 | -82.97 | 110.64 | 0.9931 | -490.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
