SDO HMI 2011-05-27 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.69 | 77.17 | 8.07 | 39.68 | -15.95 | 113.96 | -4.34 | 164.41 | 0.2679 | -95.5 | -376.6 | |
|
previous
or next observation for the same group /

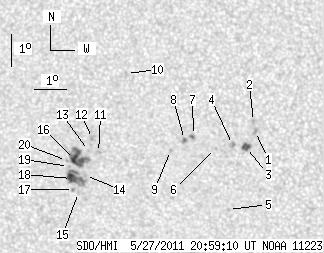

back to the solar disc SDO HMI 2011-05-27 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.89 | 0.00 | 1.47 | -15.10 | 118.33 | 0.03 | 180.12 | 0.2409 | 910.0 | 727.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -14.79 | 118.27 | -0.03 | 179.87 | 0.2356 | 915.0 | 690.0 | |
| 3.34 | 5.68 | 1.71 | 2.91 | -15.61 | 118.05 | -0.25 | 179.02 | 0.2495 | 1026.2 | 778.0 | |
| 0.00 | 3.34 | 0.00 | 1.71 | -15.51 | 117.61 | -0.69 | 177.29 | 0.2481 | 926.0 | 708.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -17.56 | 117.47 | -0.83 | 177.19 | 0.2828 | 842.0 | 568.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.64 | 117.07 | -1.23 | 175.25 | 0.2508 | 826.0 | 647.4 | |
| 0.36 | 1.62 | 0.18 | 0.83 | -15.23 | 116.38 | -1.92 | 172.39 | 0.2452 | 966.8 | 1019.0 | |
| 0.36 | 1.71 | 0.18 | 0.88 | -15.35 | 116.10 | -2.20 | 171.36 | 0.2480 | 1133.8 | 868.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.70 | 115.65 | -2.65 | 169.90 | 0.2550 | 873.0 | 674.8 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -13.29 | 114.30 | -4.00 | 162.03 | 0.2208 | 704.0 | 518.5 | |
| 0.00 | 2.34 | 0.00 | 1.20 | -15.76 | 113.37 | -4.93 | 161.77 | 0.2654 | -759.0 | -701.5 | |
| 0.00 | 3.34 | 0.00 | 1.71 | -15.32 | 113.19 | -5.11 | 160.58 | 0.2594 | -941.0 | -739.6 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.70 | 113.06 | -5.24 | 160.61 | 0.2661 | -816.0 | -585.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -16.48 | 112.94 | -5.36 | 161.20 | 0.2792 | -874.0 | -719.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.02 | 112.70 | -5.60 | 161.08 | 0.2890 | -734.0 | -587.0 | |
| 4.69 | 22.73 | 2.41 | 11.69 | -15.98 | 112.61 | -5.69 | 159.47 | 0.2732 | -1220.1 | -965.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -16.92 | 112.55 | -5.75 | 160.48 | 0.2883 | -881.0 | -687.7 | |
| 6.94 | 19.93 | 3.59 | 10.29 | -16.57 | 112.49 | -5.81 | 159.88 | 0.2832 | -930.4 | -785.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.20 | 112.41 | -5.89 | 159.12 | 0.2778 | -643.0 | -466.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.01 | 112.35 | -5.95 | 158.67 | 0.2752 | -695.0 | -596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
