SDO HMI 2011-05-27 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.68 | 111.81 | 63.84 | 337.73 | -20.36 | 38.07 | -80.23 | 110.46 | 0.9860 | -96.0 | -74.9 | |
|
previous
or next observation for the same group /

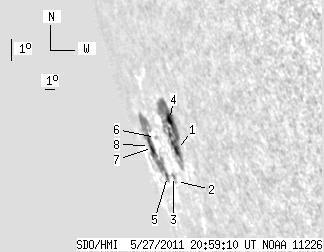

back to the solar disc SDO HMI 2011-05-27 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 61.23 | 3.50 | 149.96 | -20.63 | 40.36 | -77.94 | 110.82 | 0.9801 | 368.5 | 77.7 | |
| 0.00 | 1.44 | 0.00 | 4.32 | -21.63 | 38.14 | -80.16 | 111.74 | 0.9868 | 232.0 | 136.0 | |
| 0.00 | 2.25 | 0.00 | 6.81 | -21.47 | 37.94 | -80.36 | 111.56 | 0.9873 | 134.0 | -12.2 | |
| 3.61 | -1.00 | 8.47 | -1.00 | -19.67 | 40.77 | -77.53 | 109.86 | 0.9785 | 389.7 | 999999 | |
| 2.89 | 45.09 | 10.02 | 170.87 | -21.44 | 36.71 | -81.59 | 111.49 | 0.9902 | -391.5 | -244.1 | |
| 0.00 | 1.80 | 0.00 | 5.77 | -20.18 | 37.27 | -81.03 | 110.24 | 0.9888 | -493.0 | -468.4 | |
| 7.94 | -5.00 | 30.46 | -5.00 | -20.48 | 35.79 | -82.51 | 110.49 | 0.9922 | -414.1 | 999999 | |
| 2.80 | -5.00 | 11.39 | -5.00 | -20.40 | 35.22 | -83.09 | 110.40 | 0.9933 | 496.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
